This was an introductory prototyping class I taught as an adjunct teacher at BYU. I taught the students to use various shop machines to create appearance prototypes.

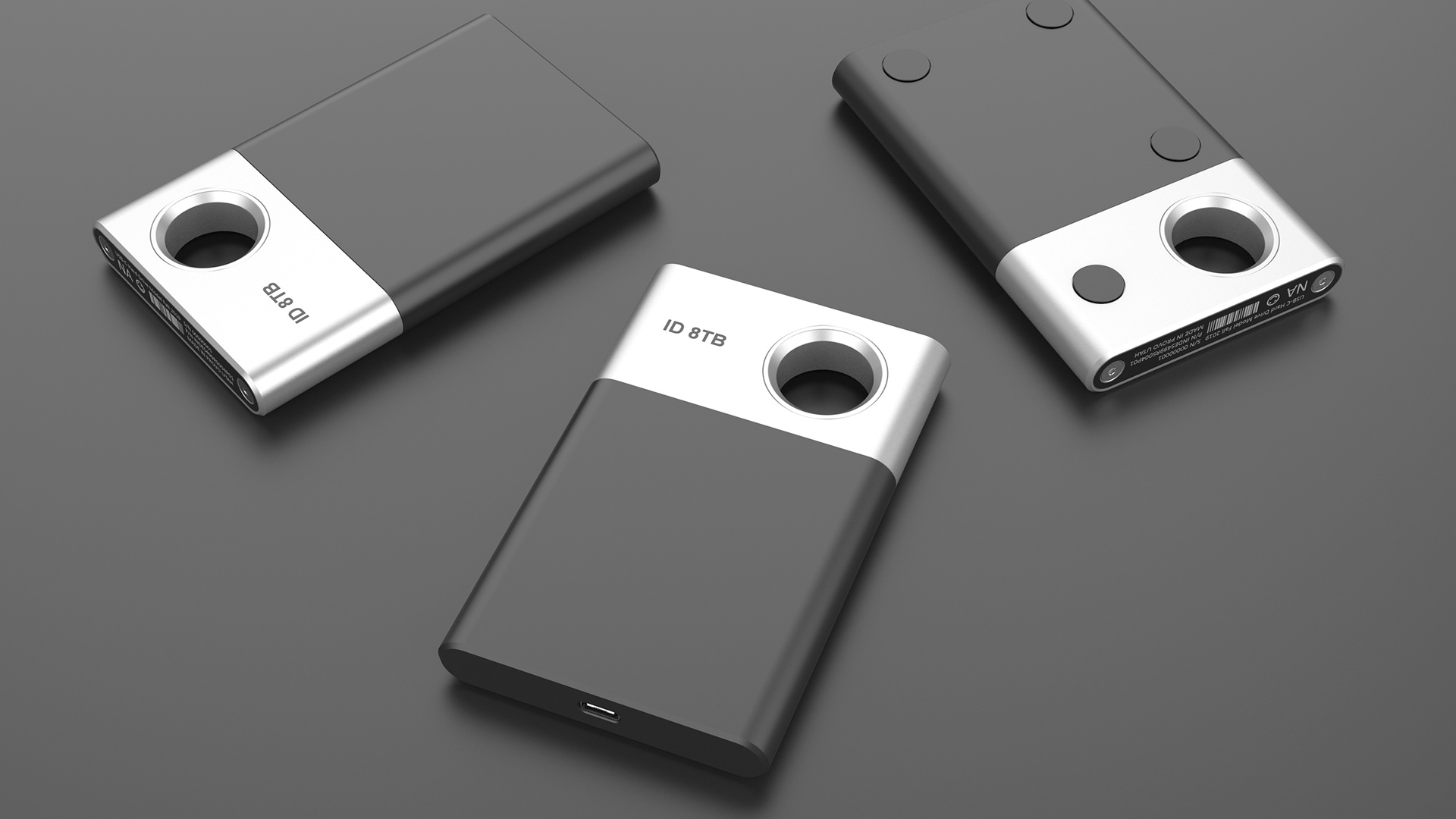

SSD Assignment

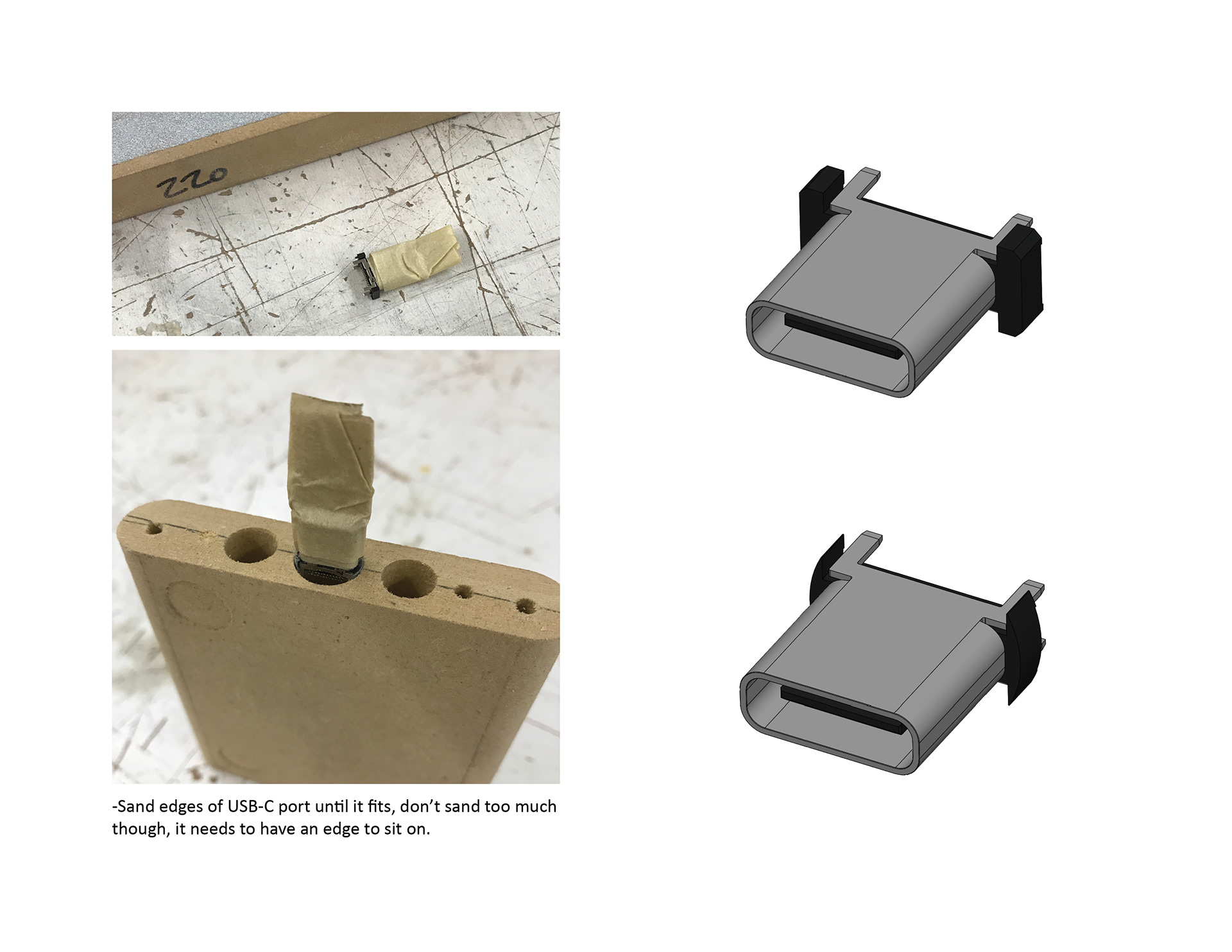

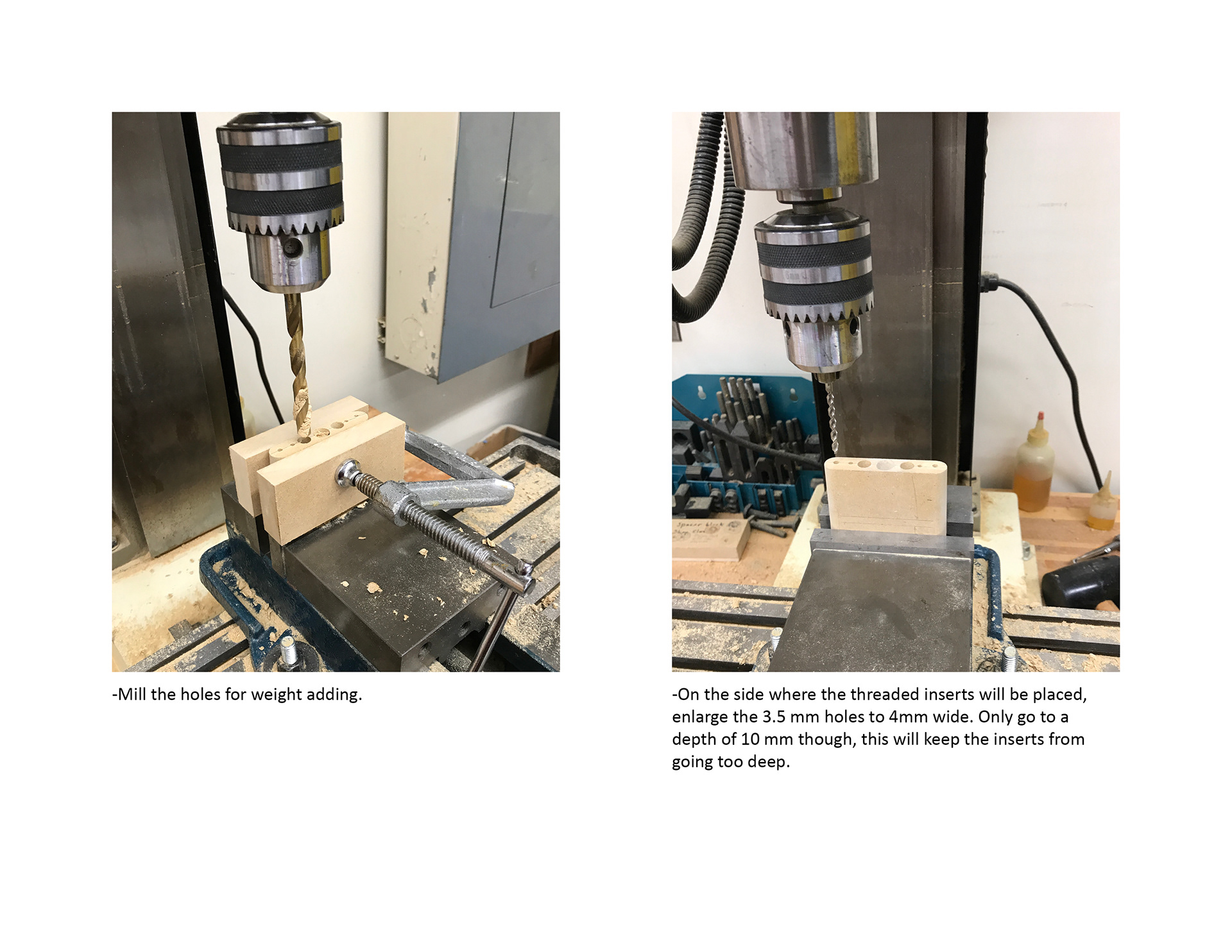

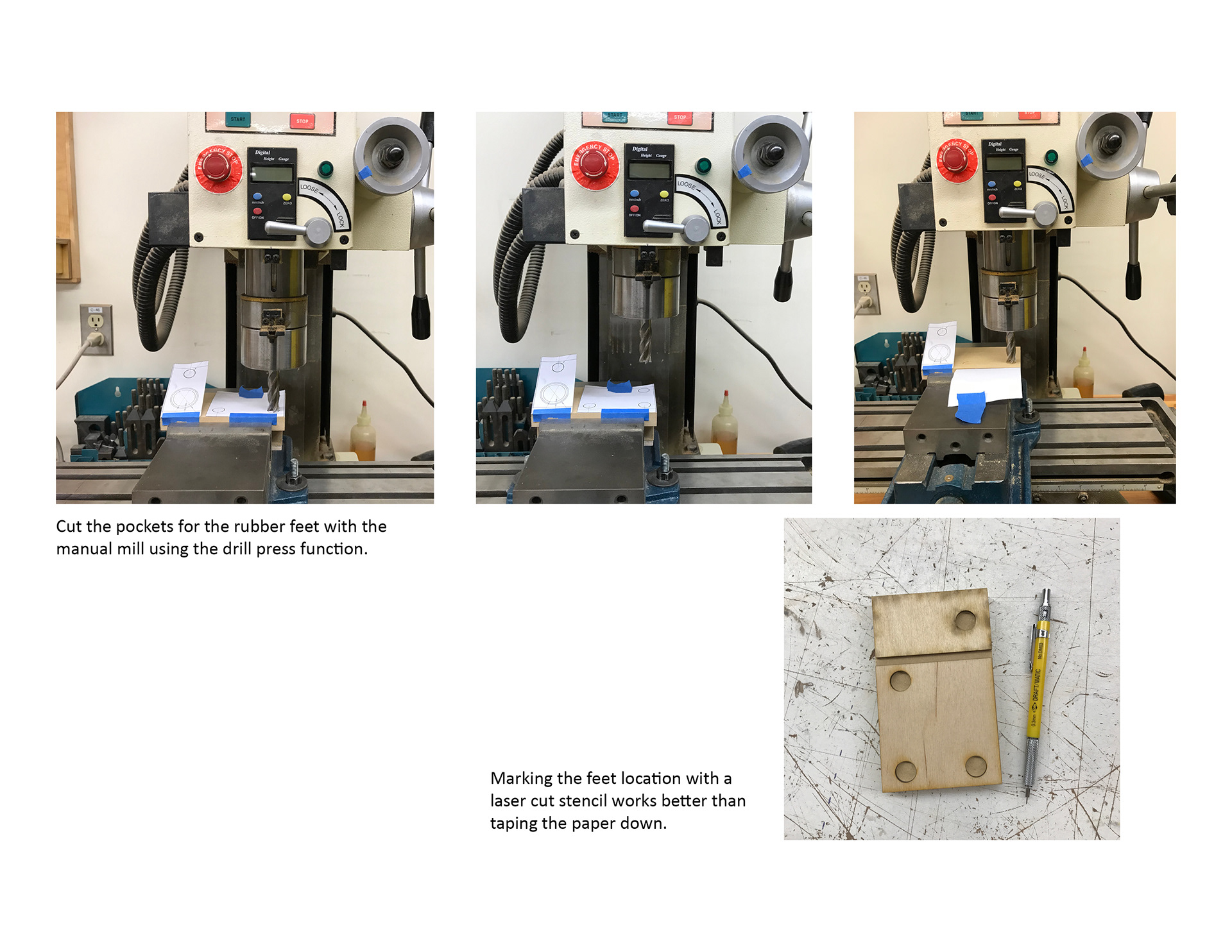

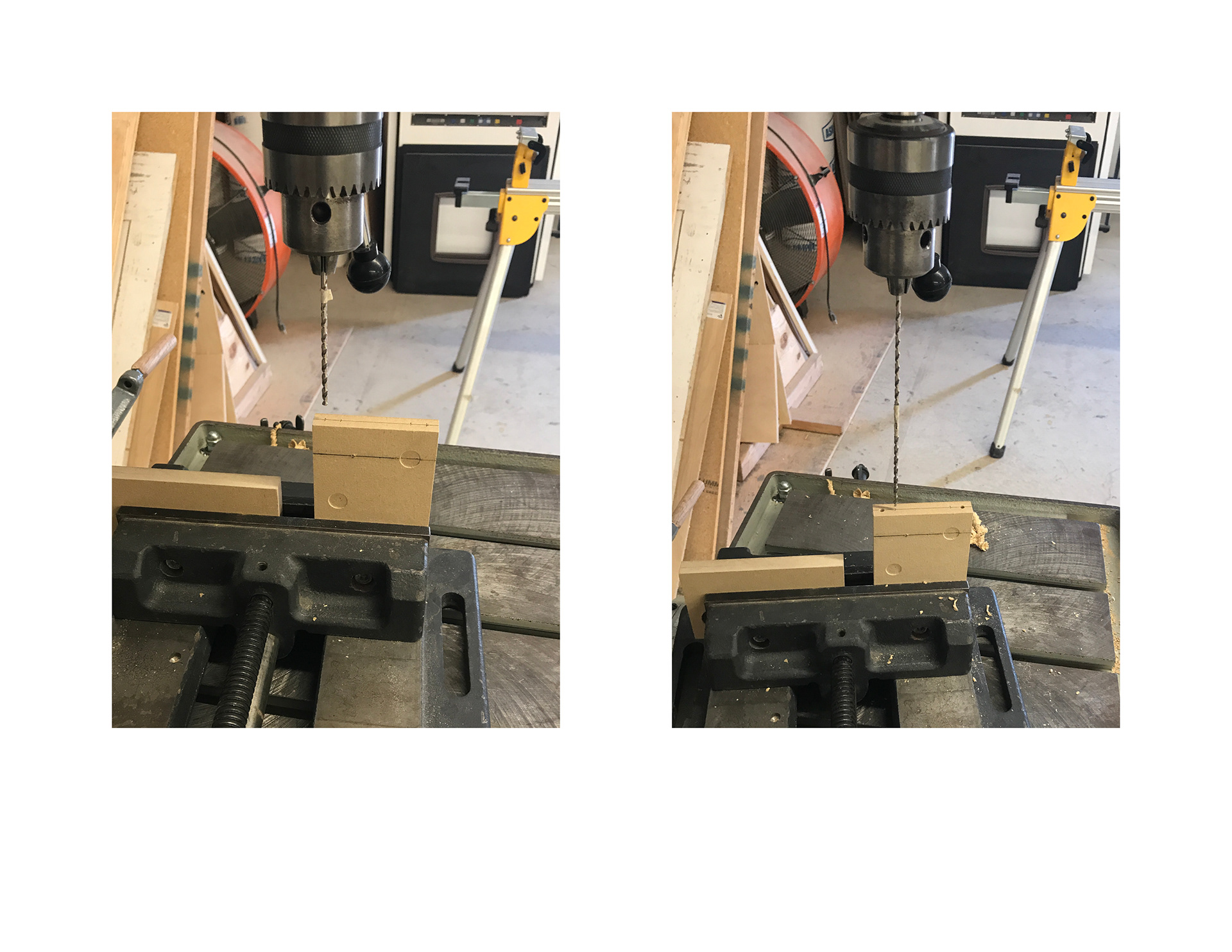

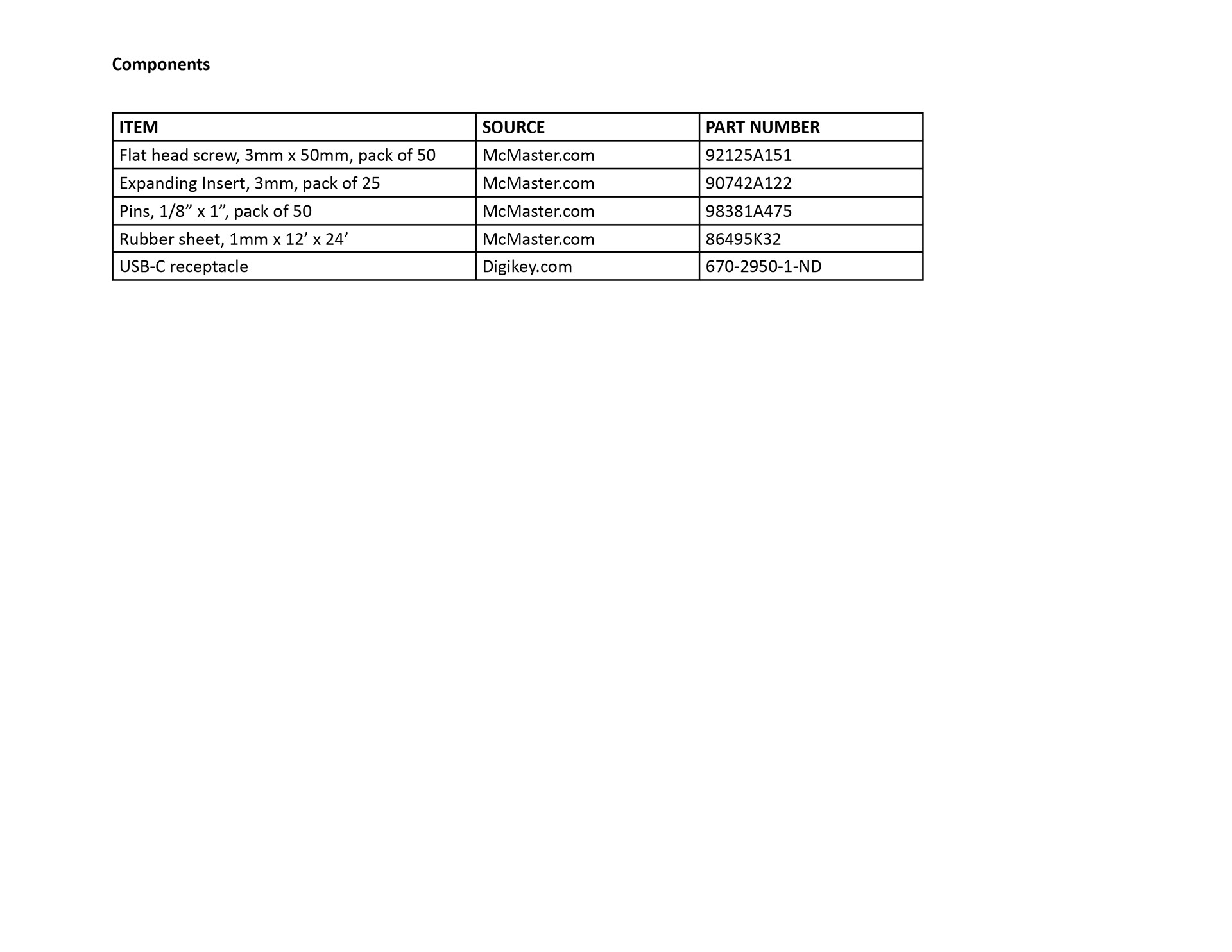

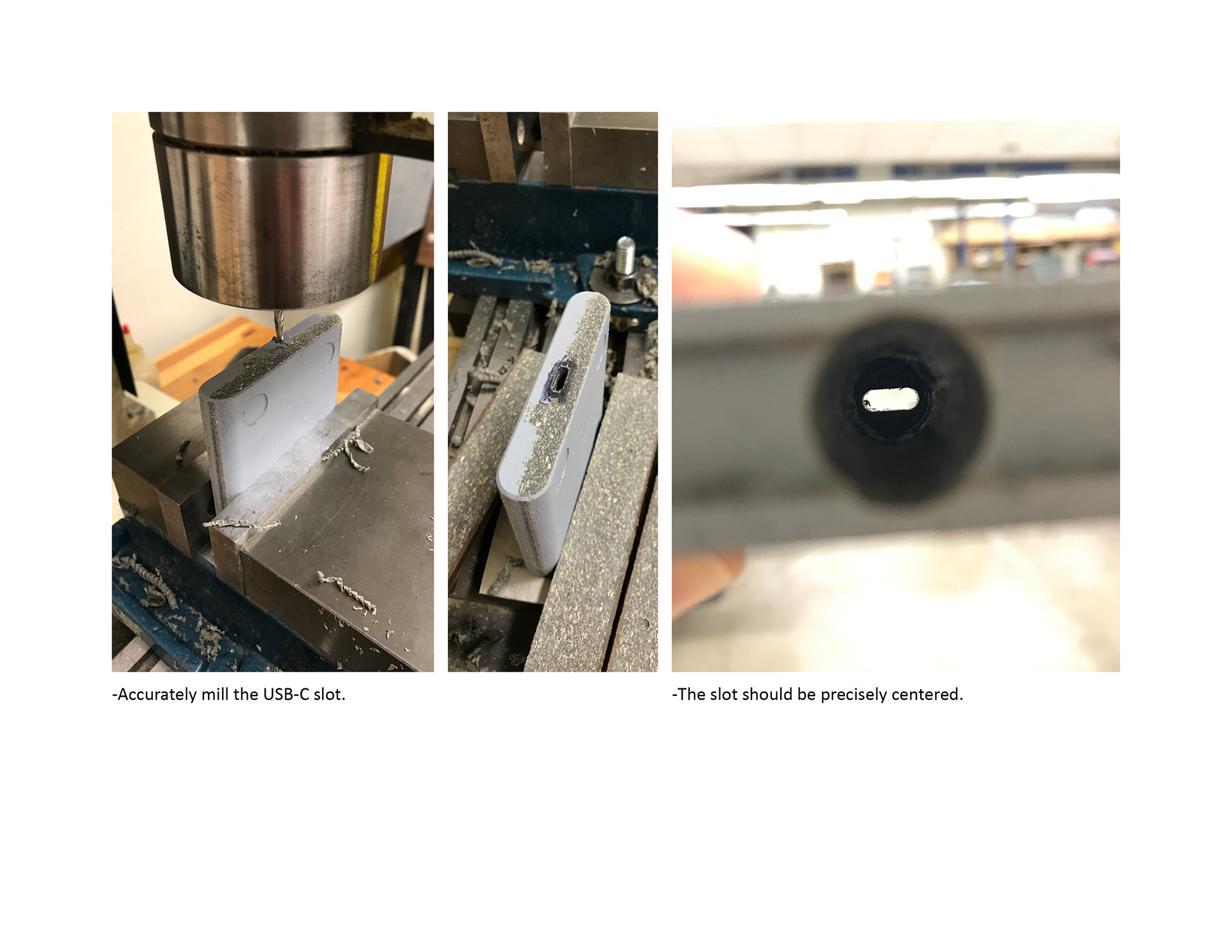

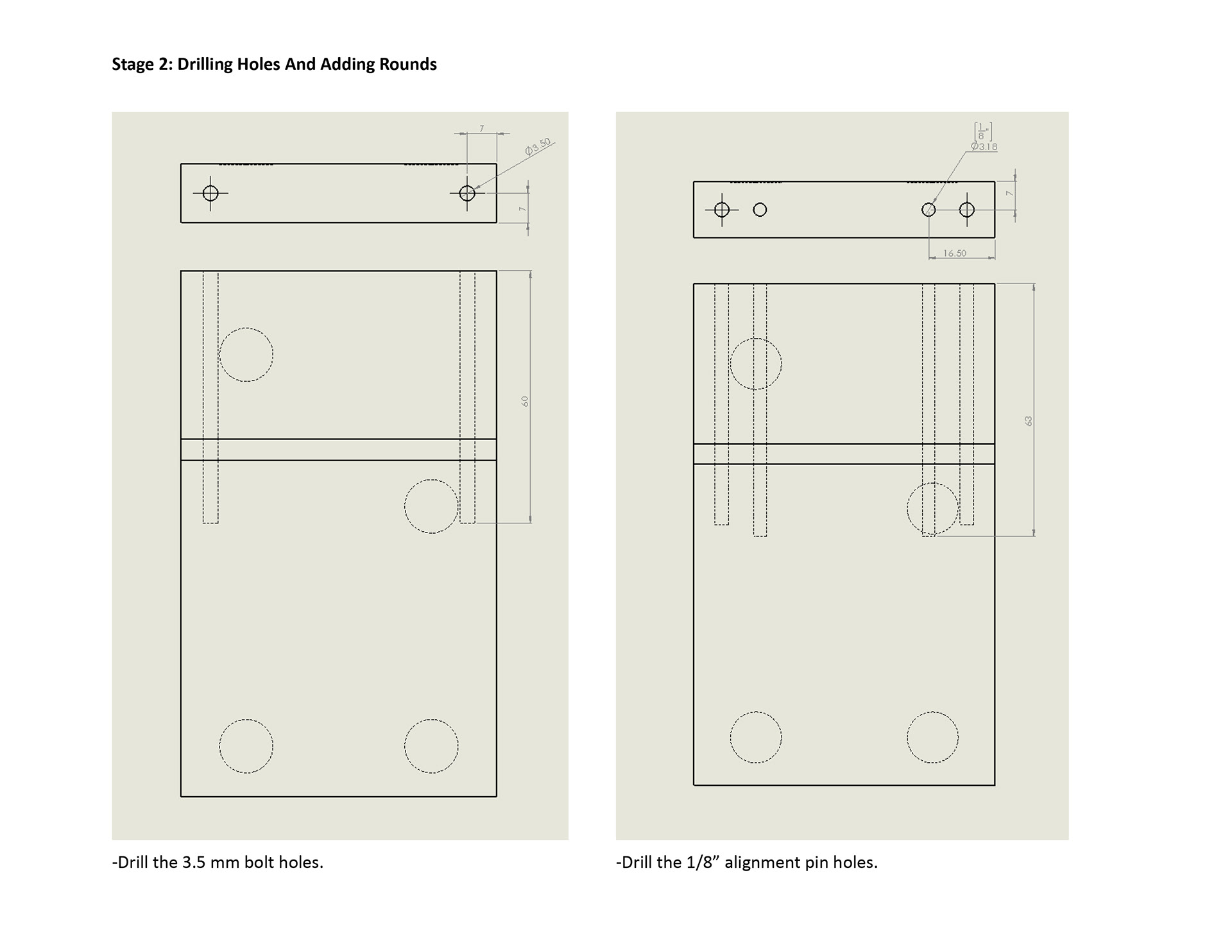

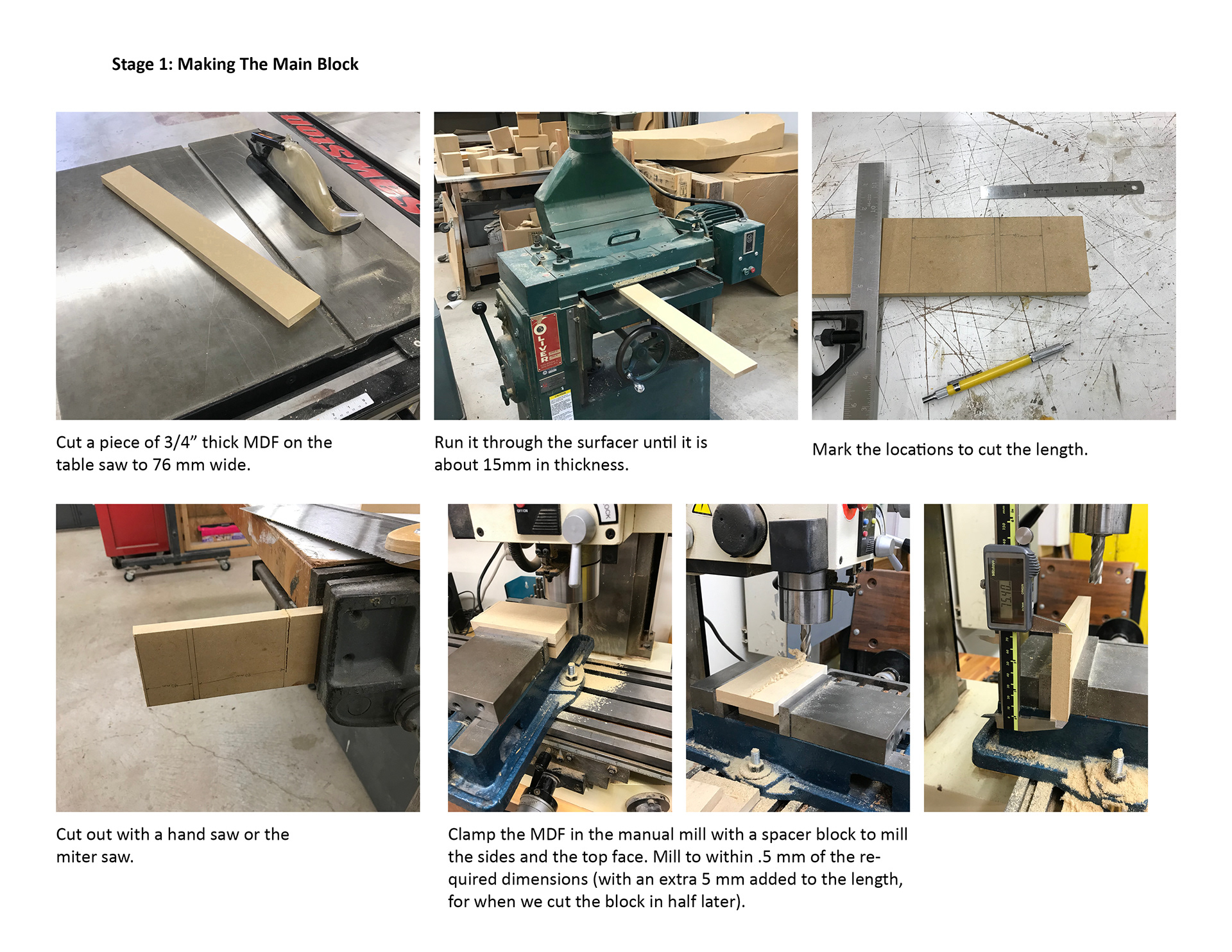

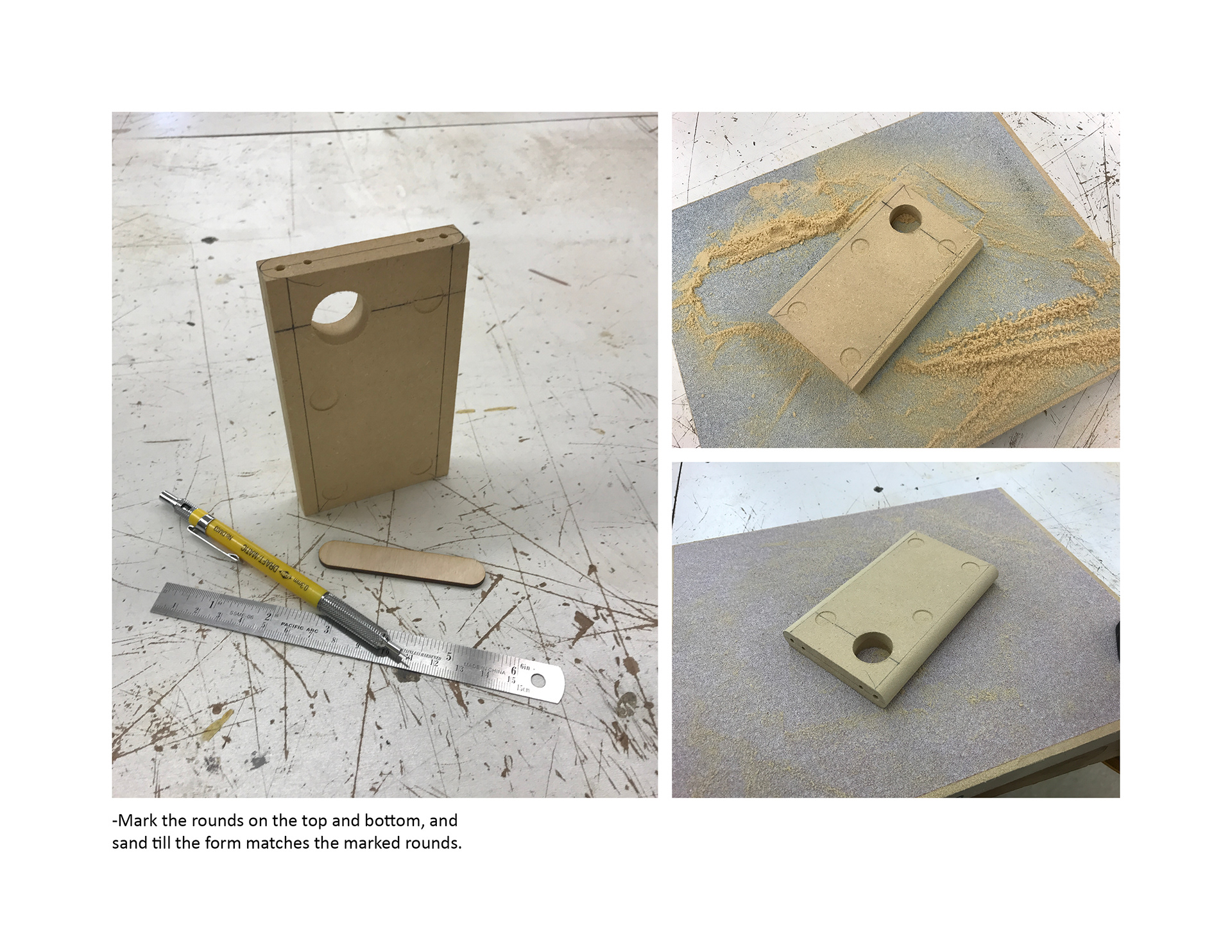

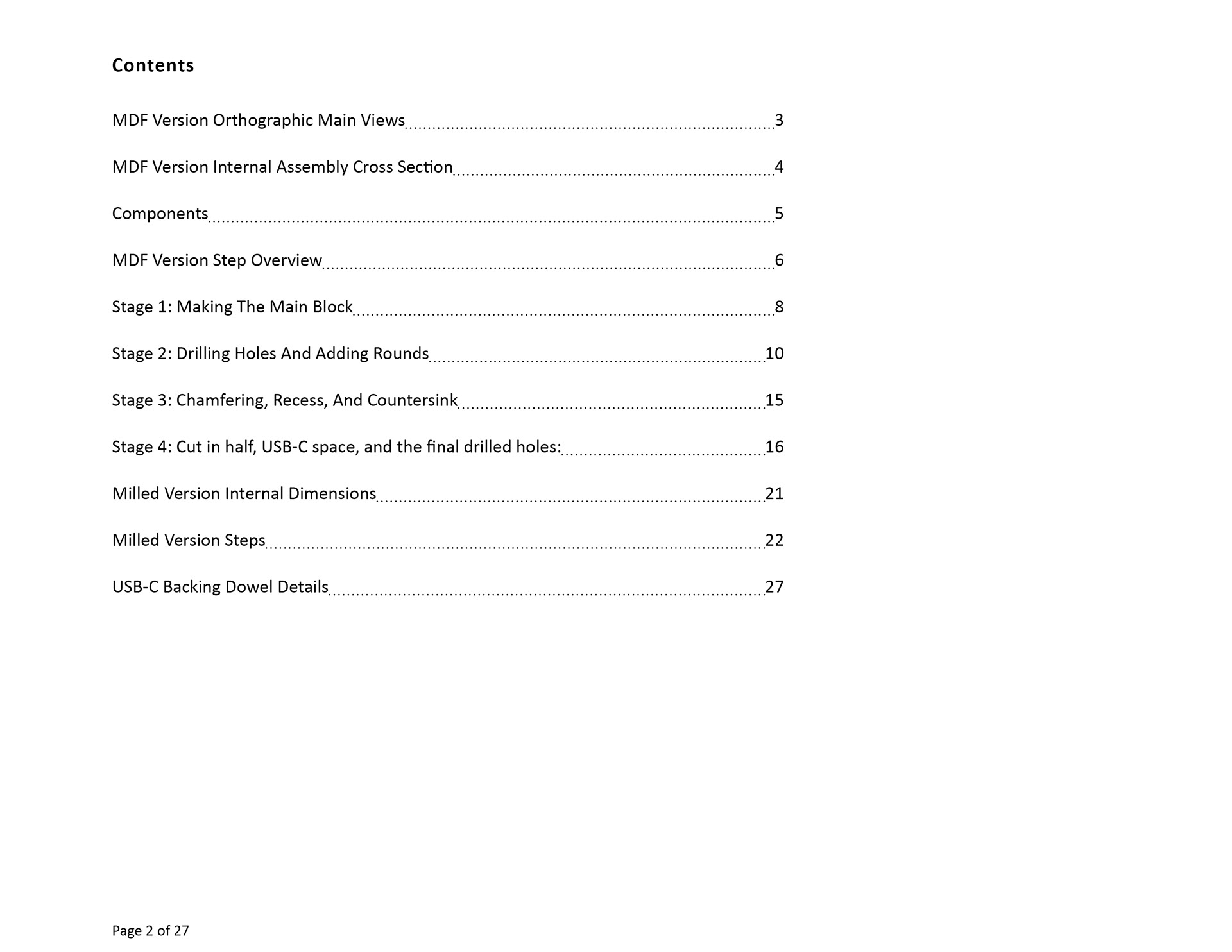

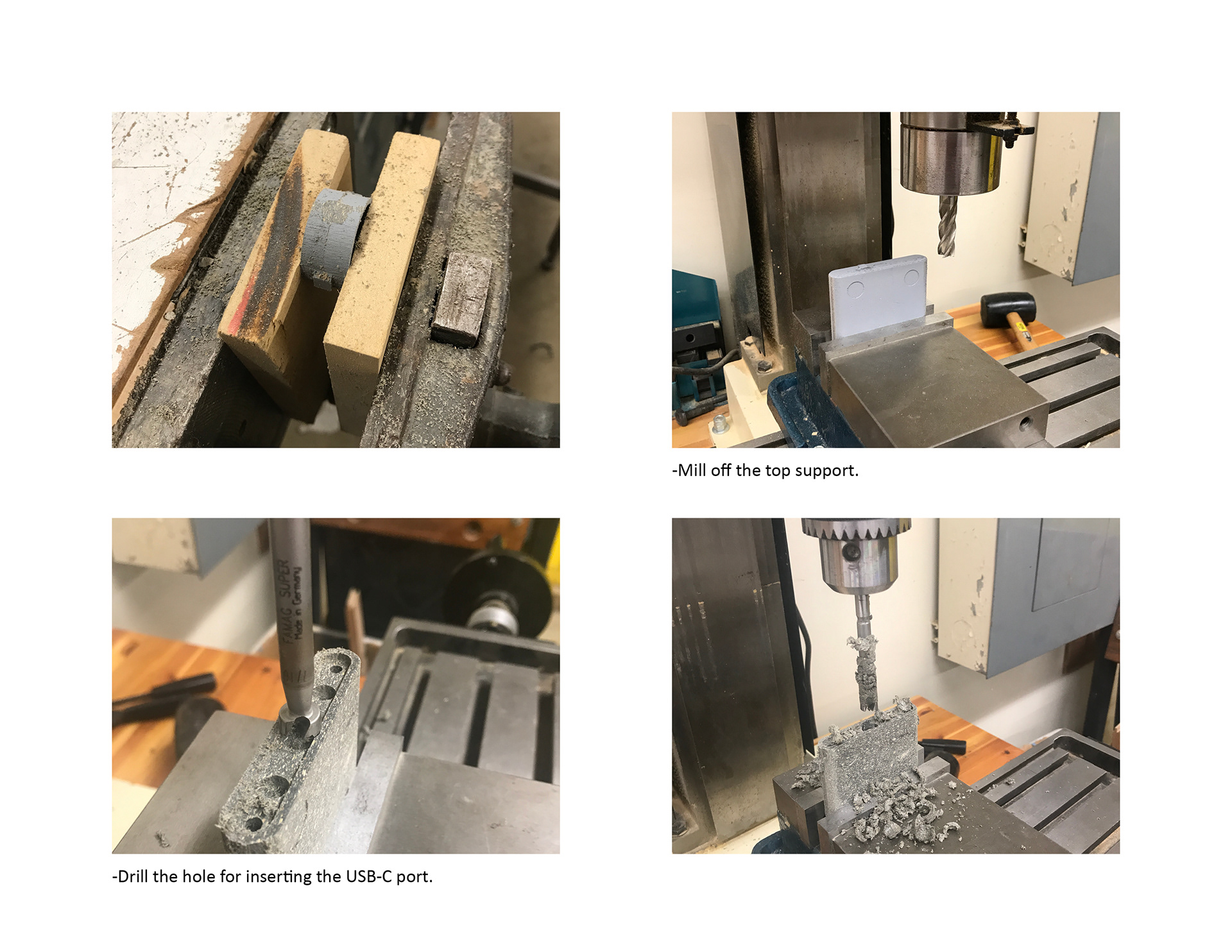

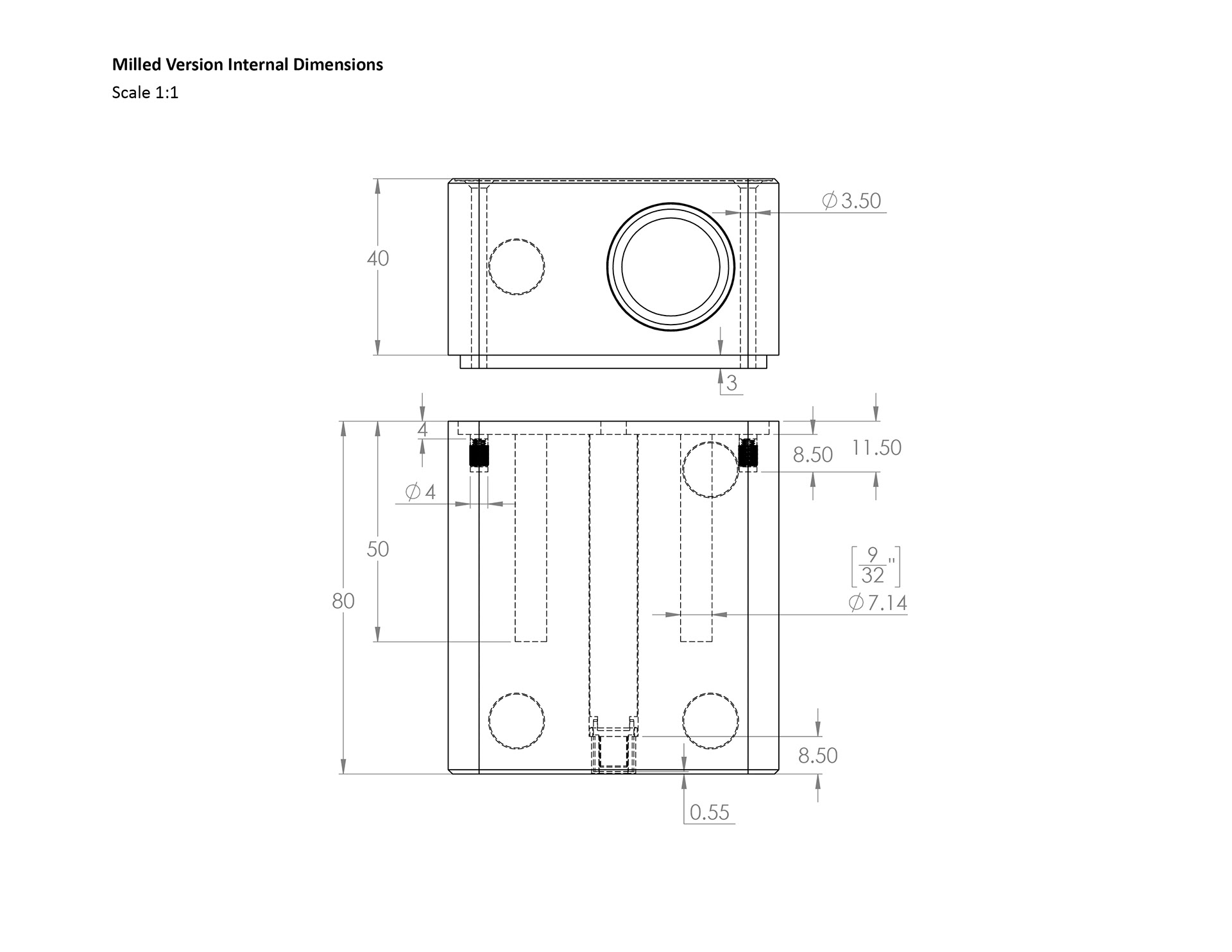

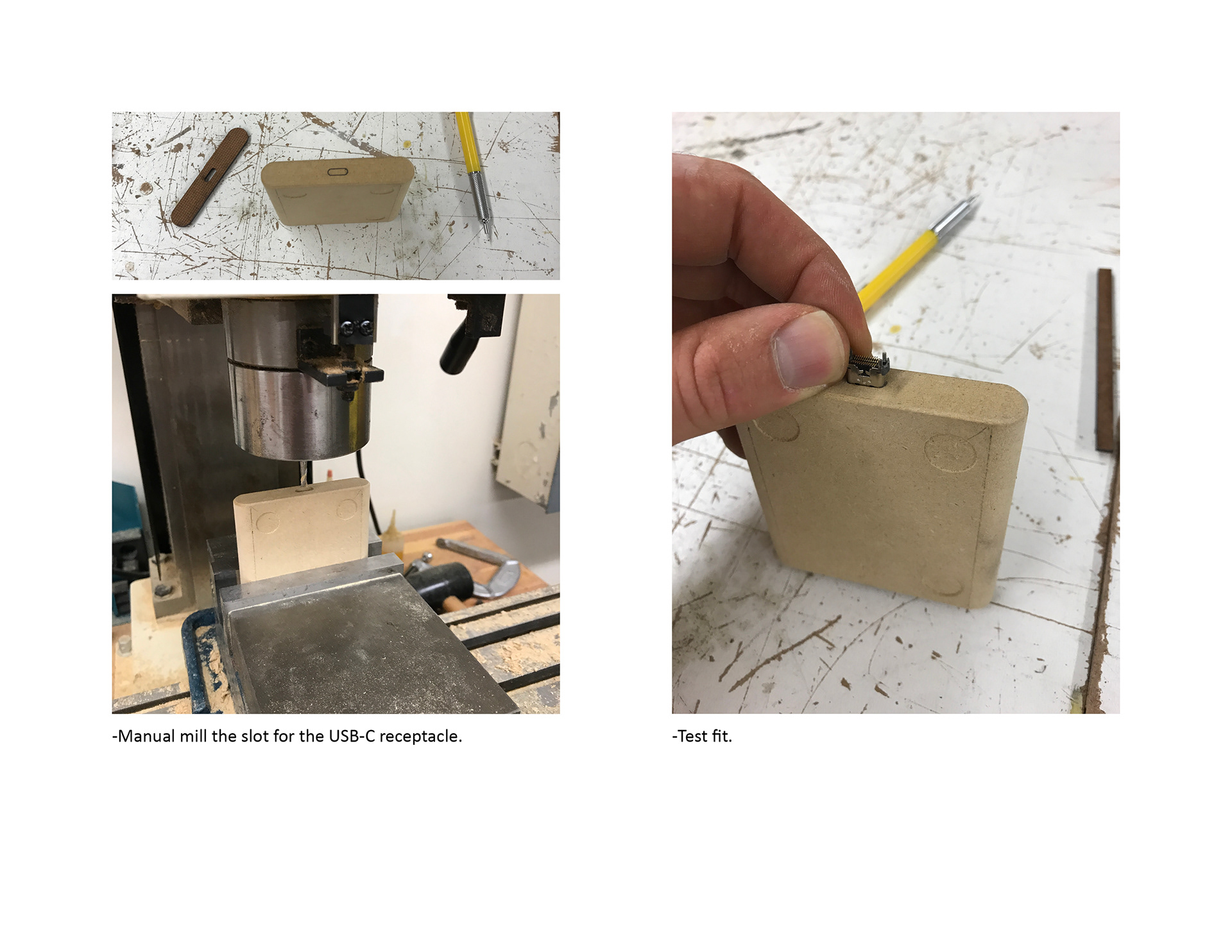

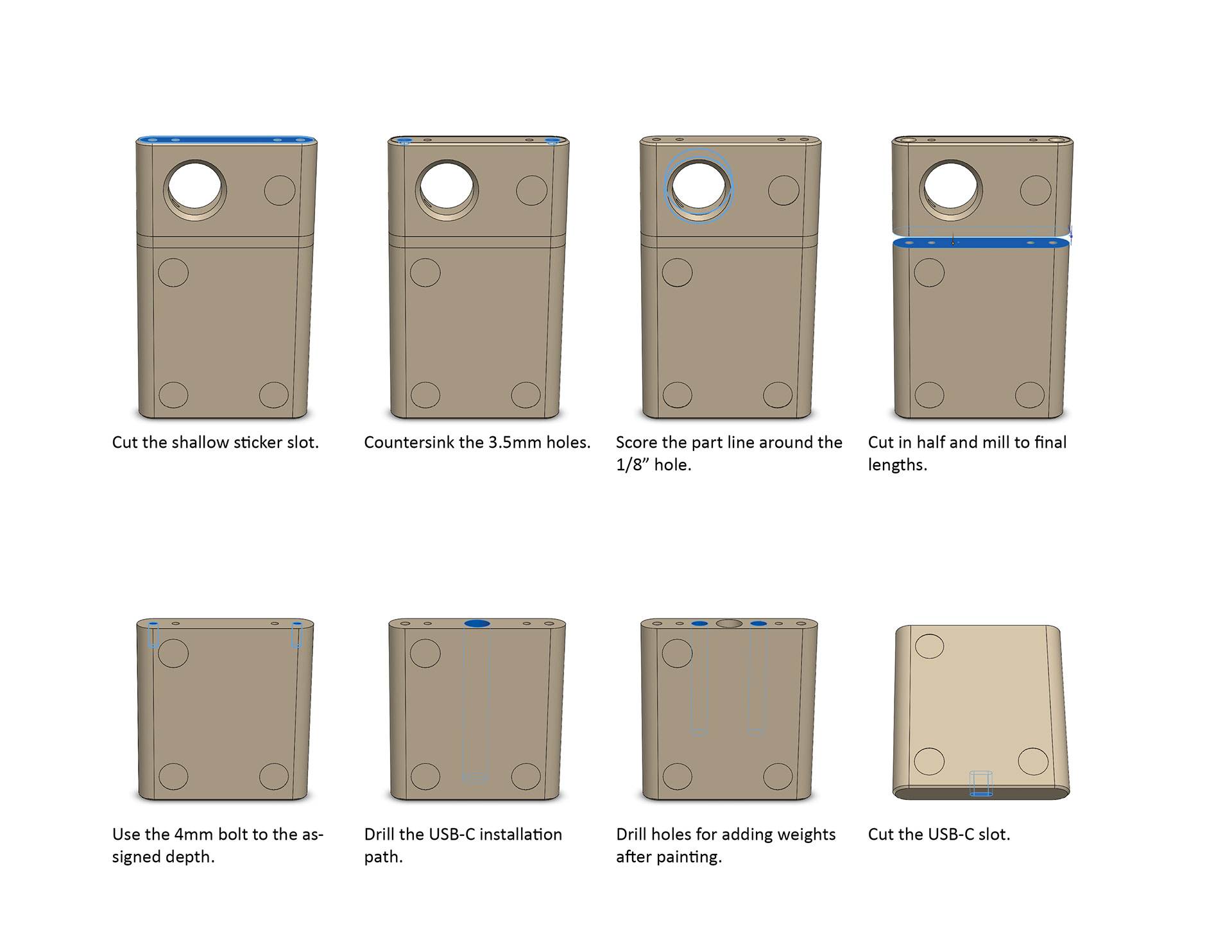

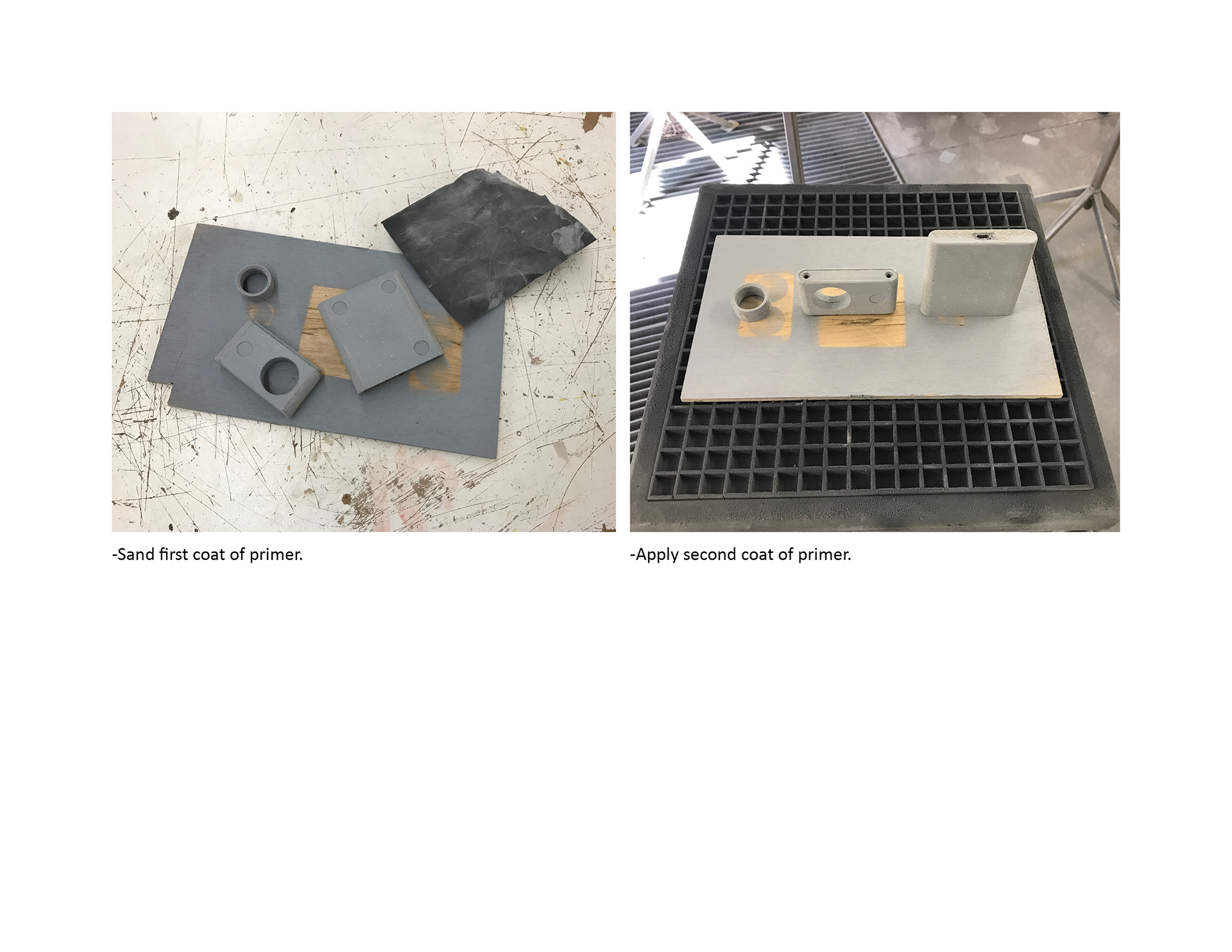

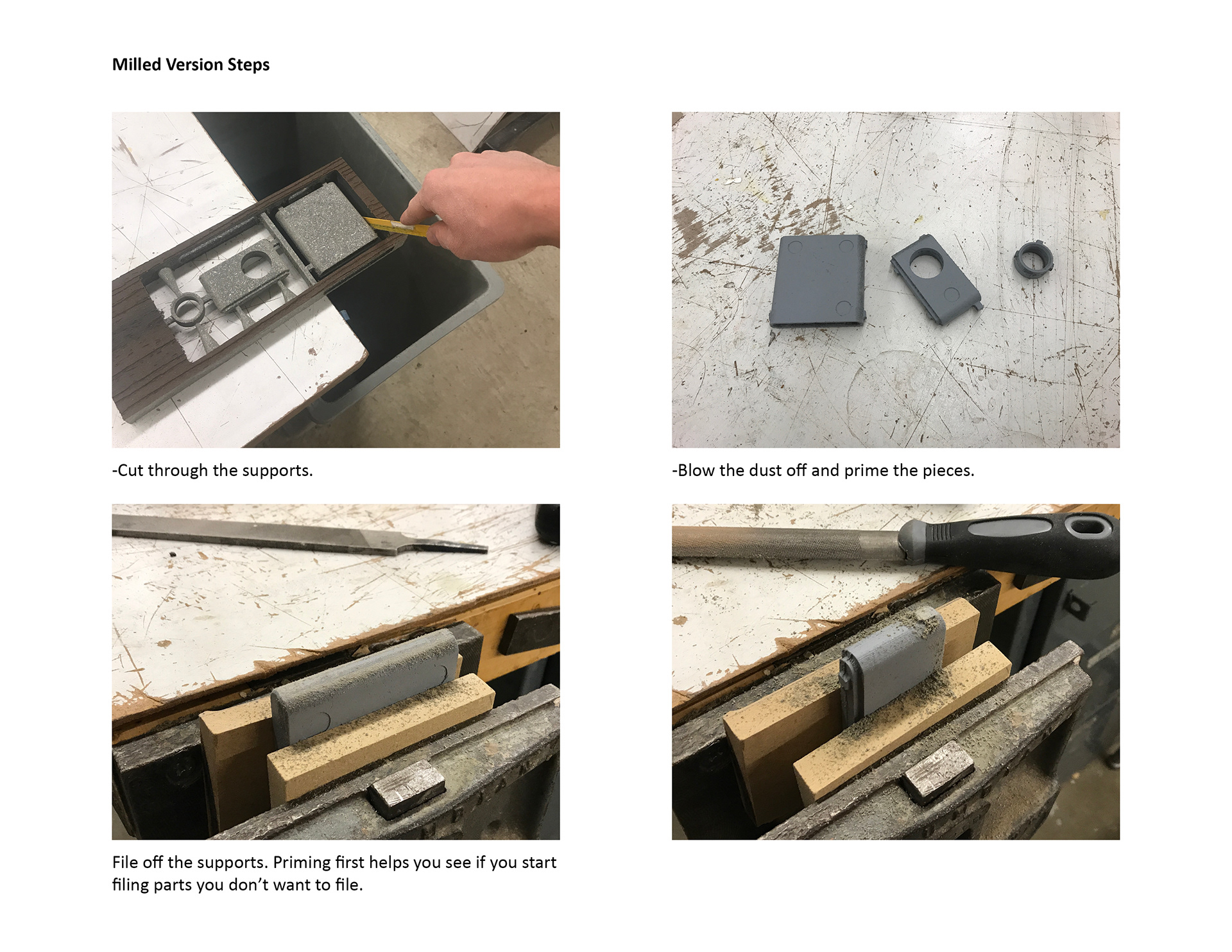

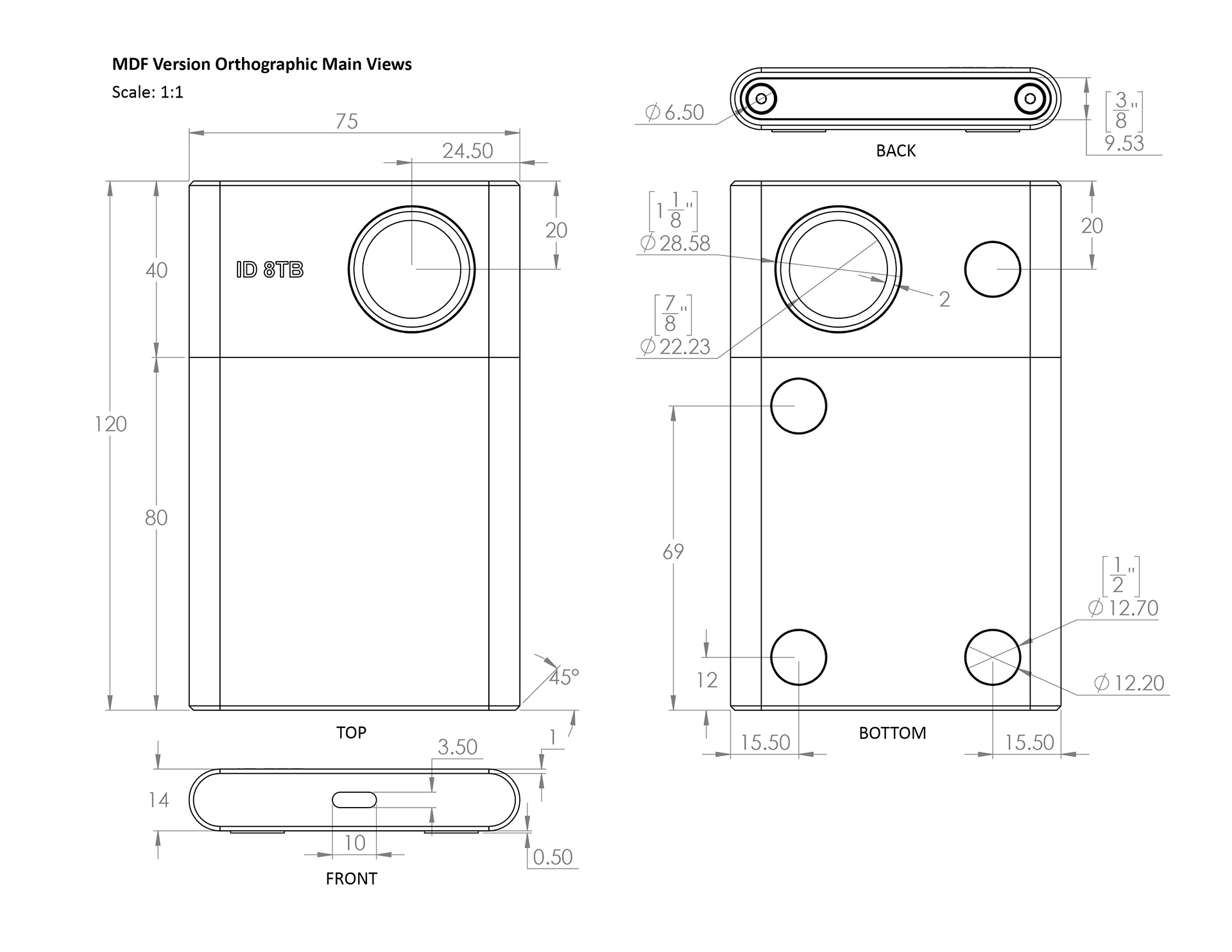

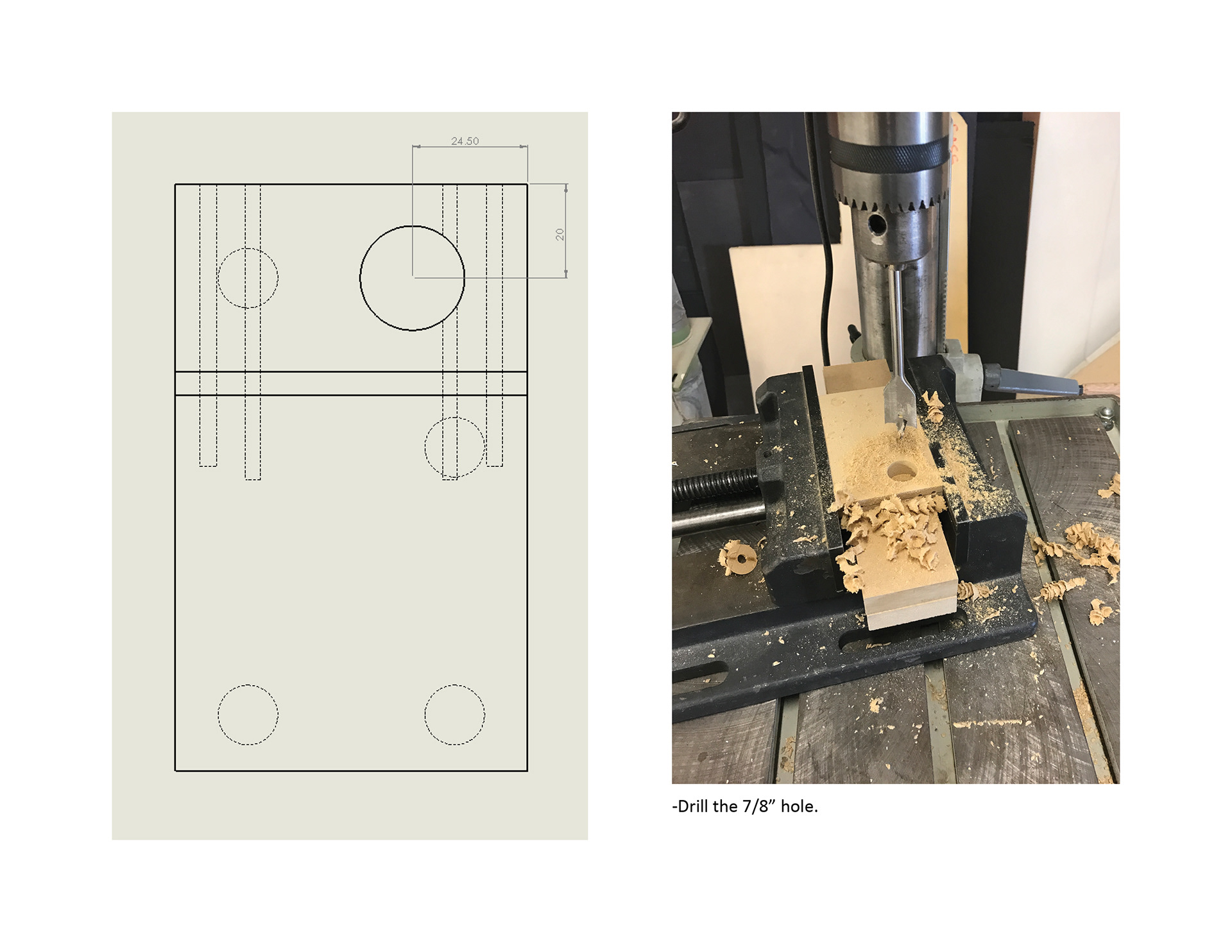

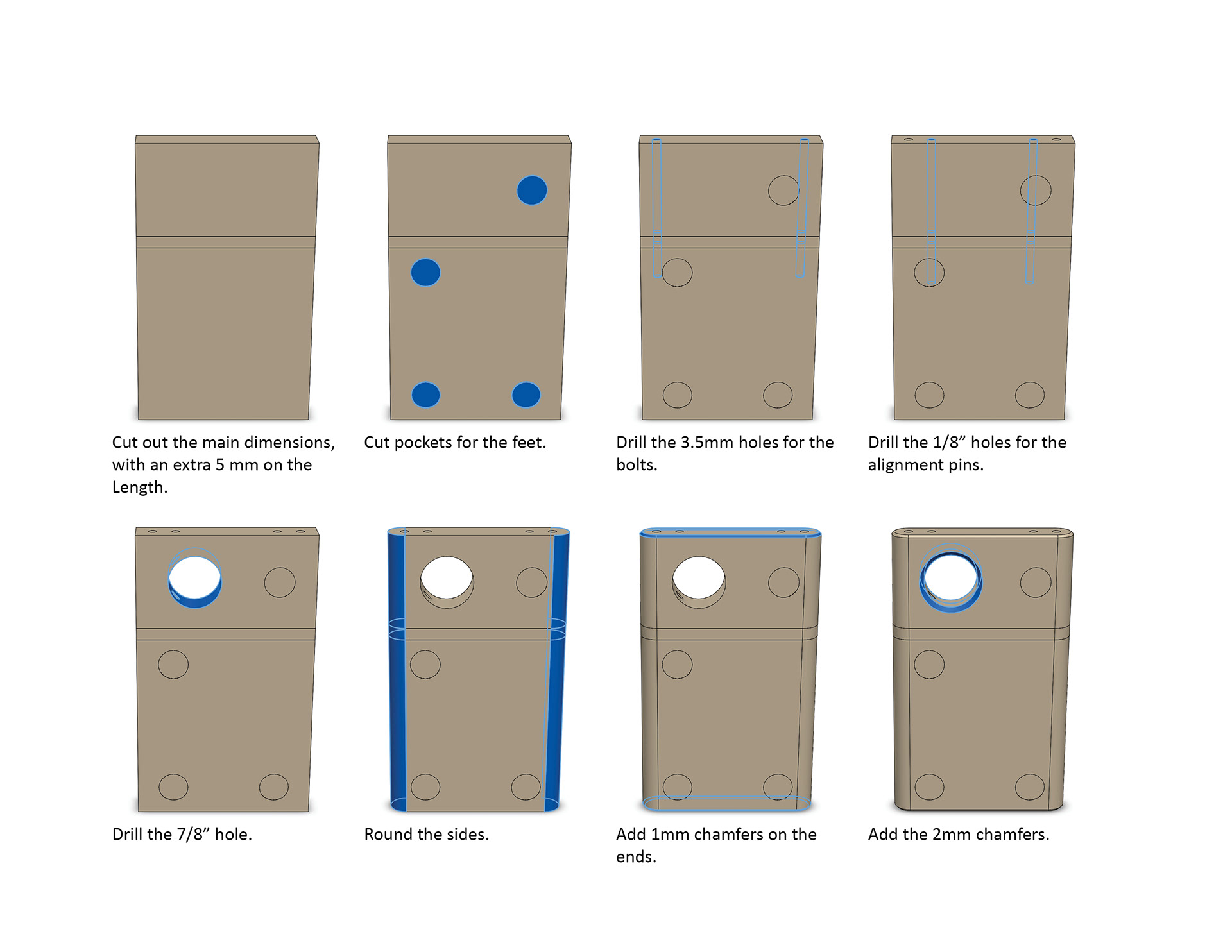

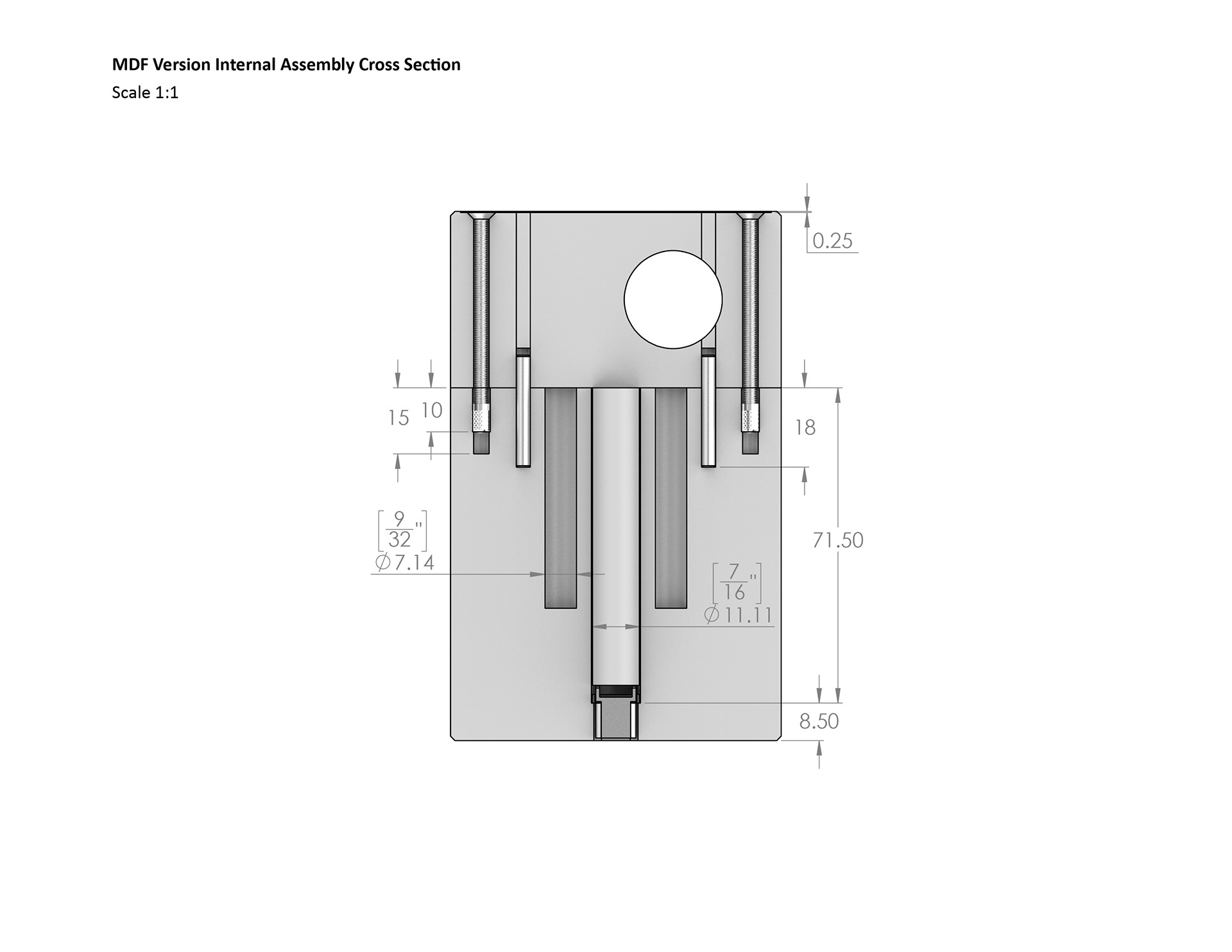

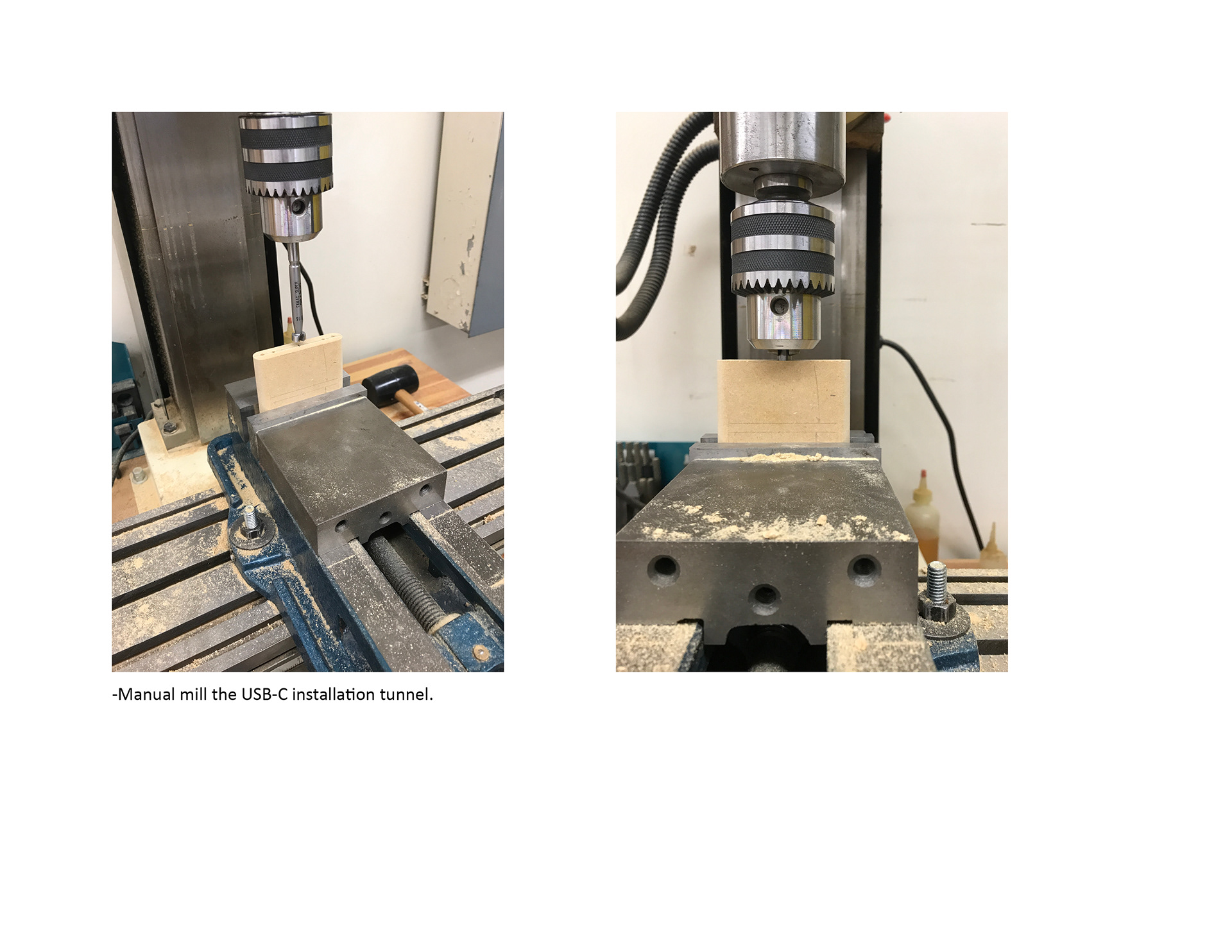

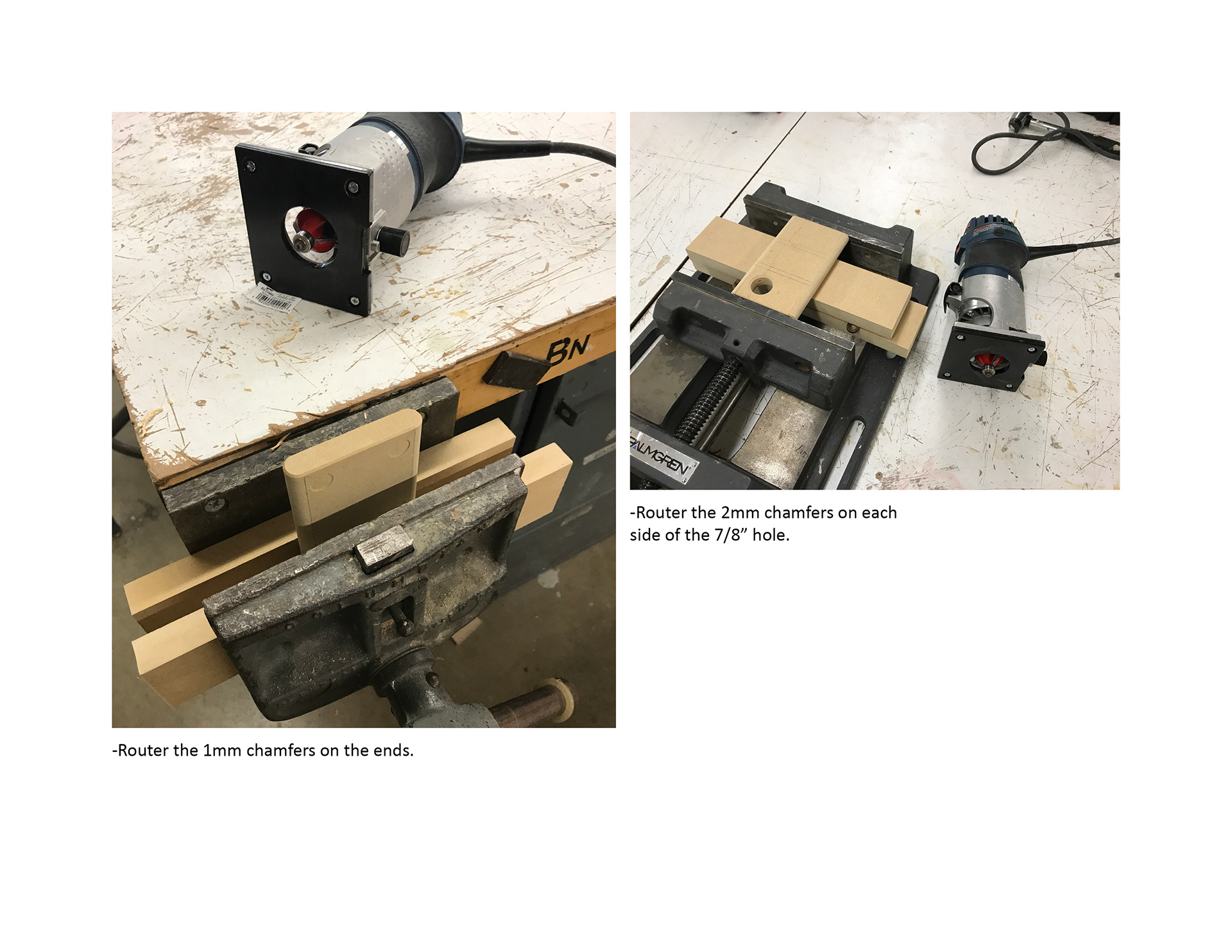

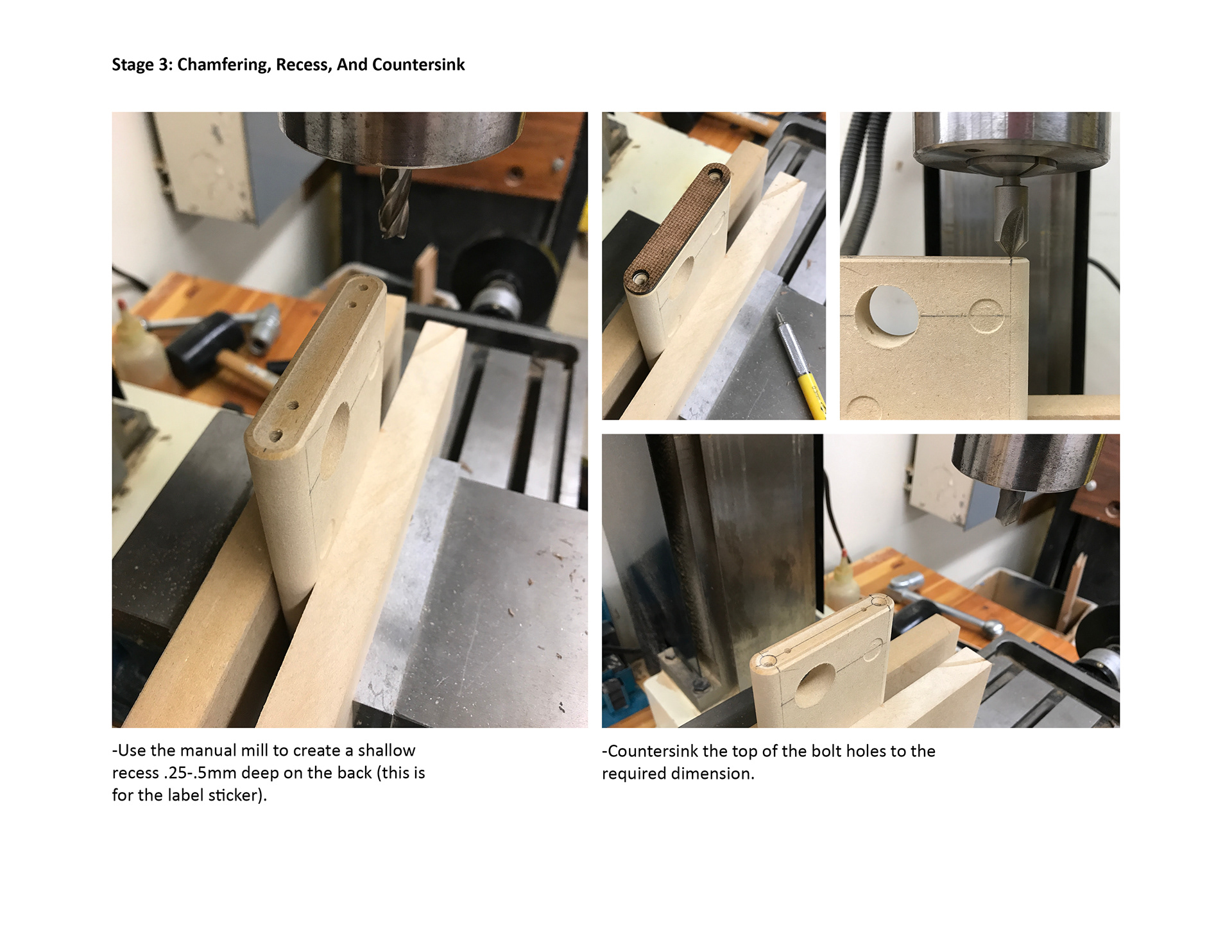

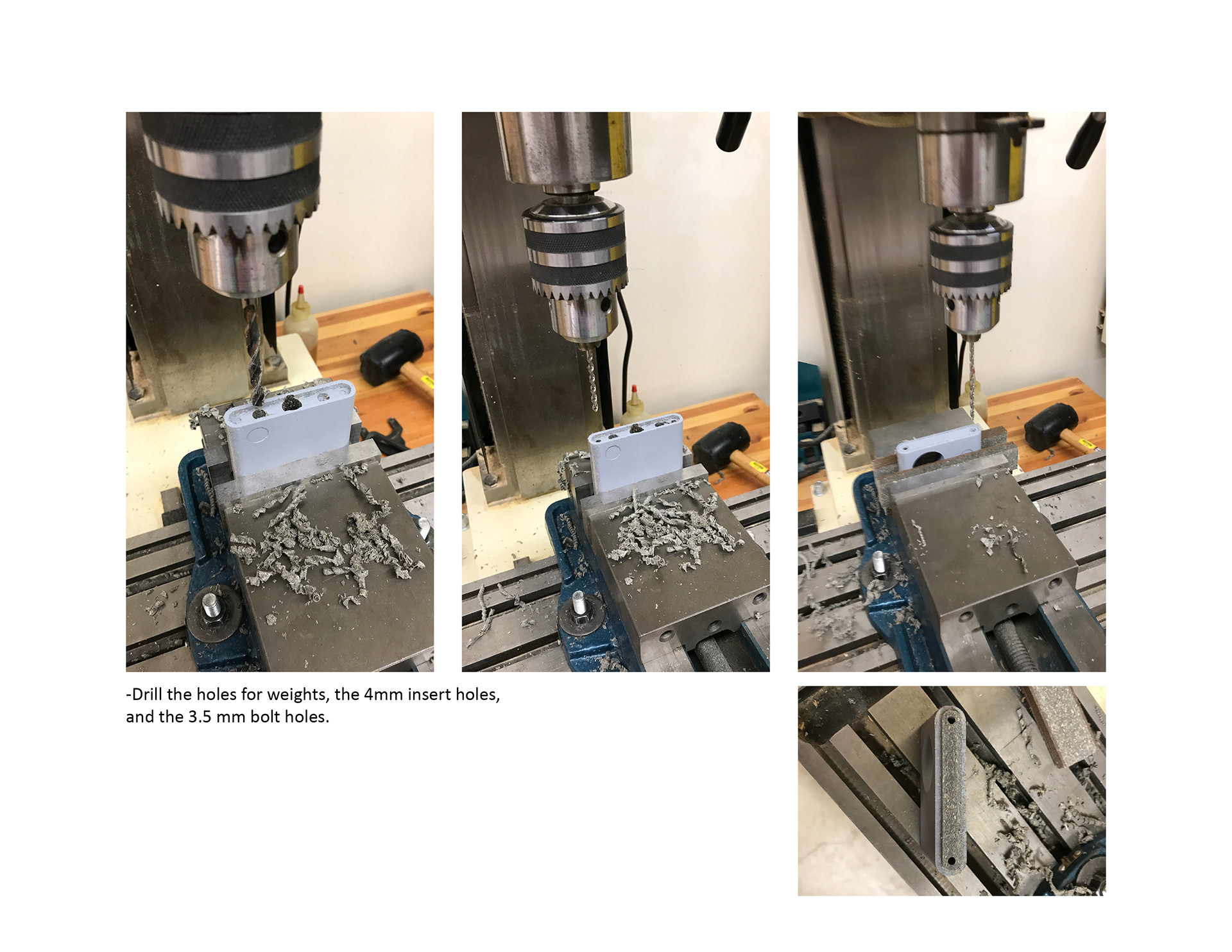

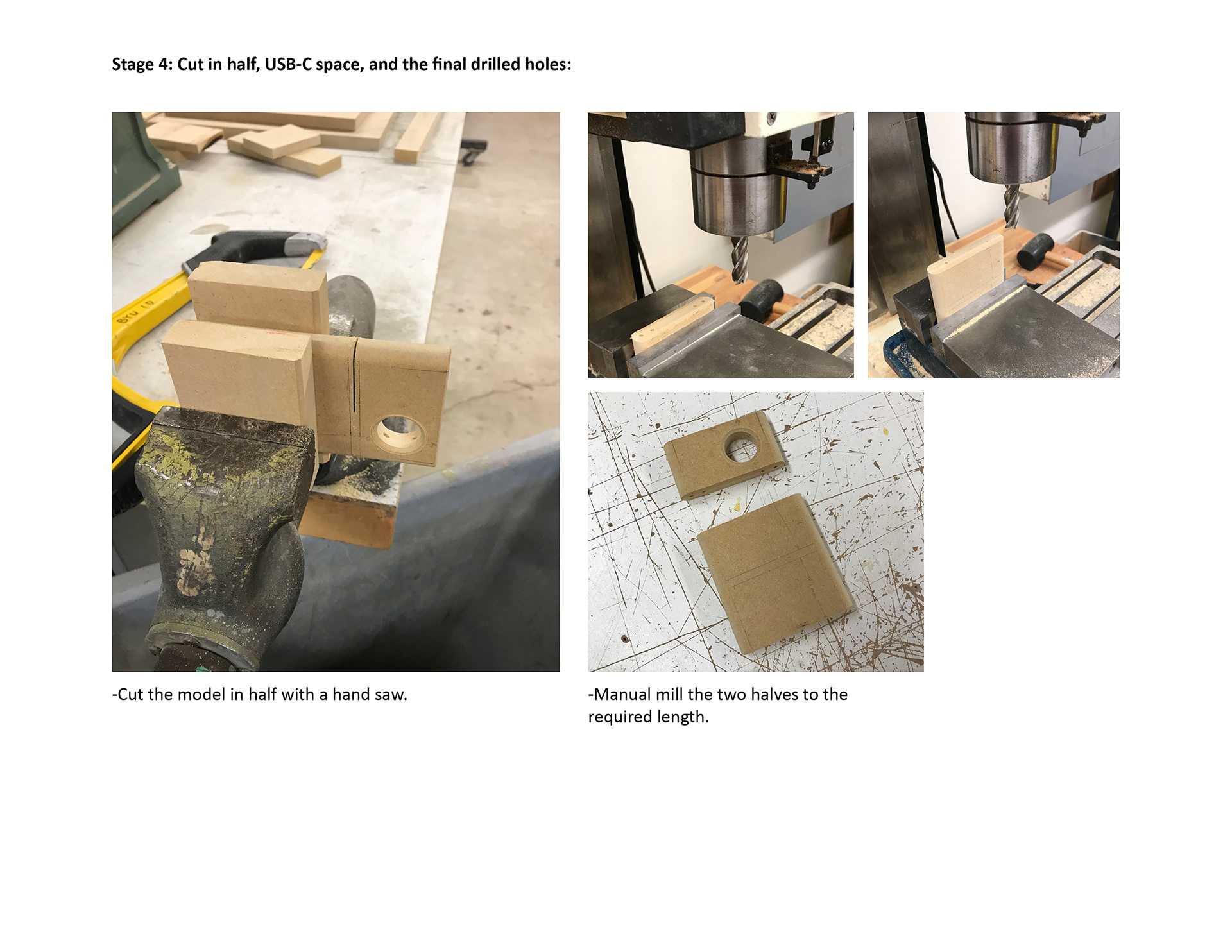

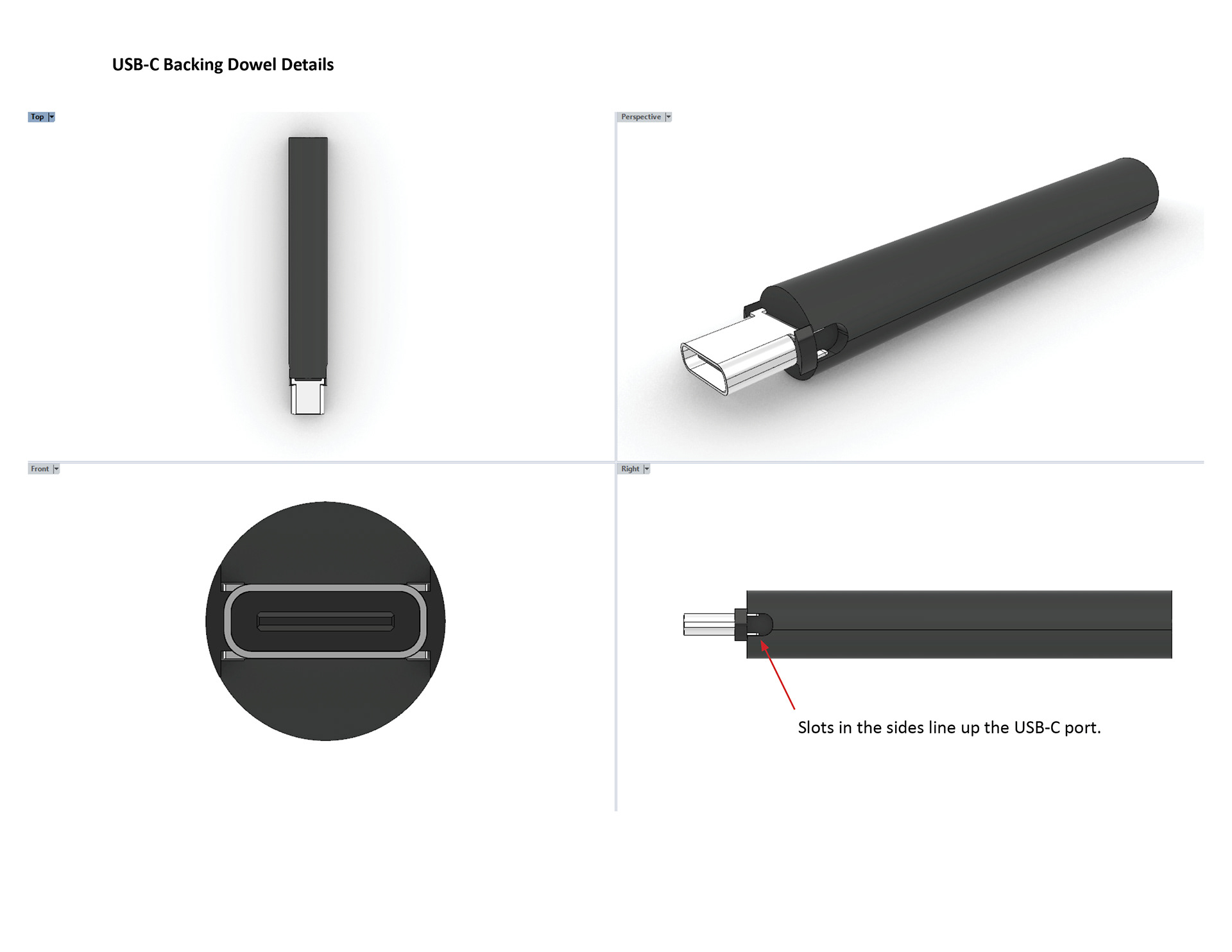

Images from an instructional PDF I made.
Headlamp Assignment

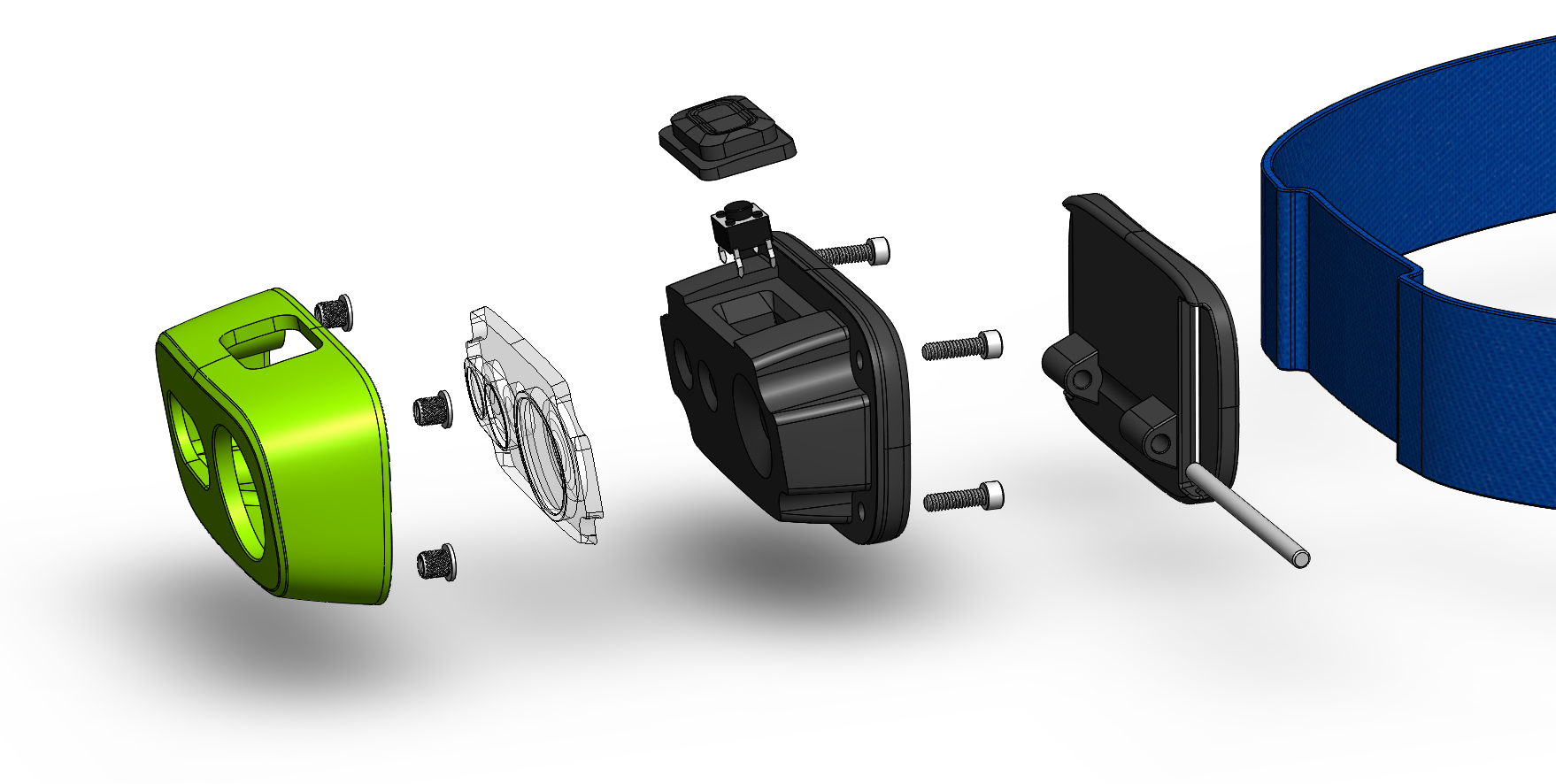

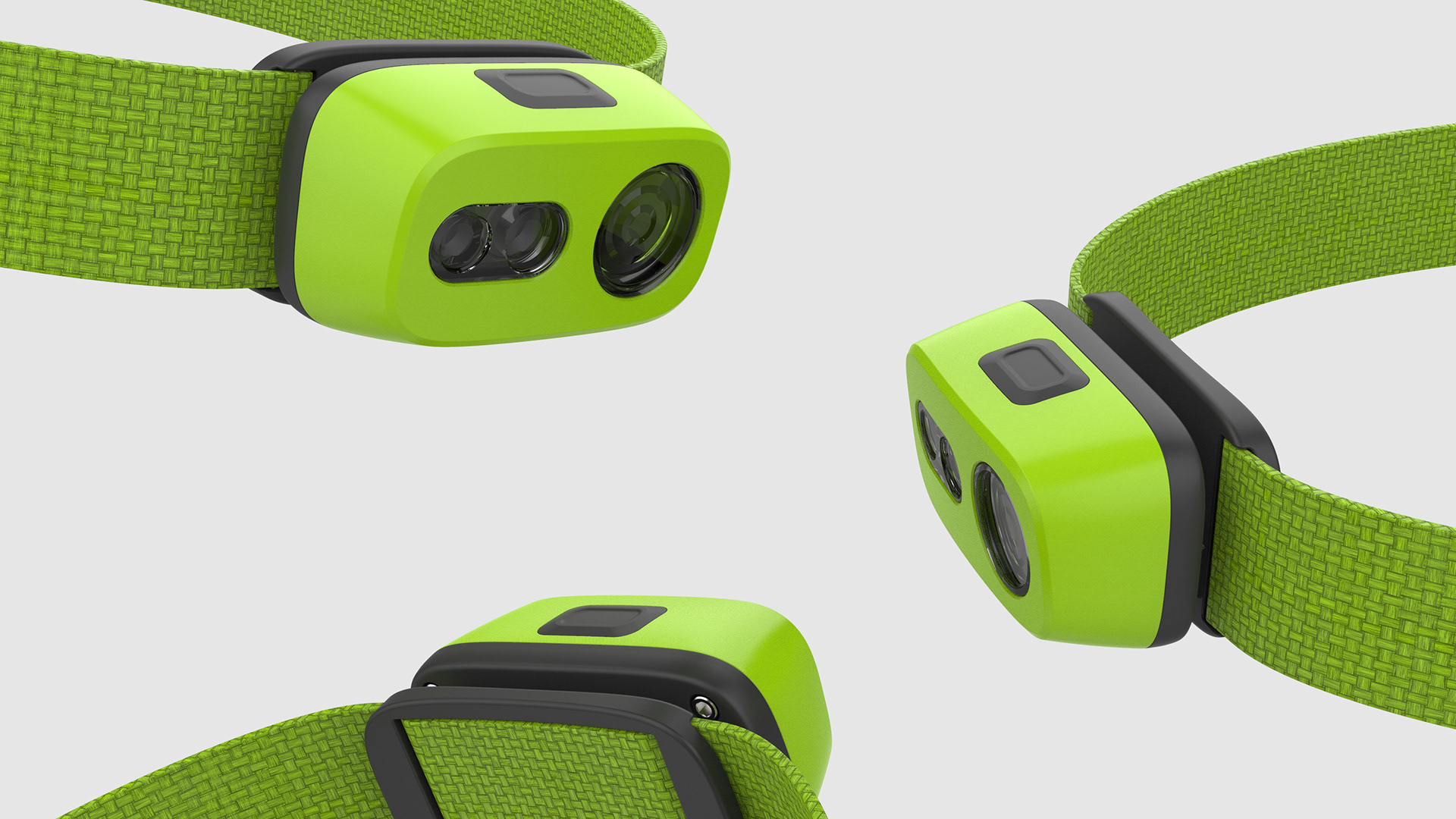

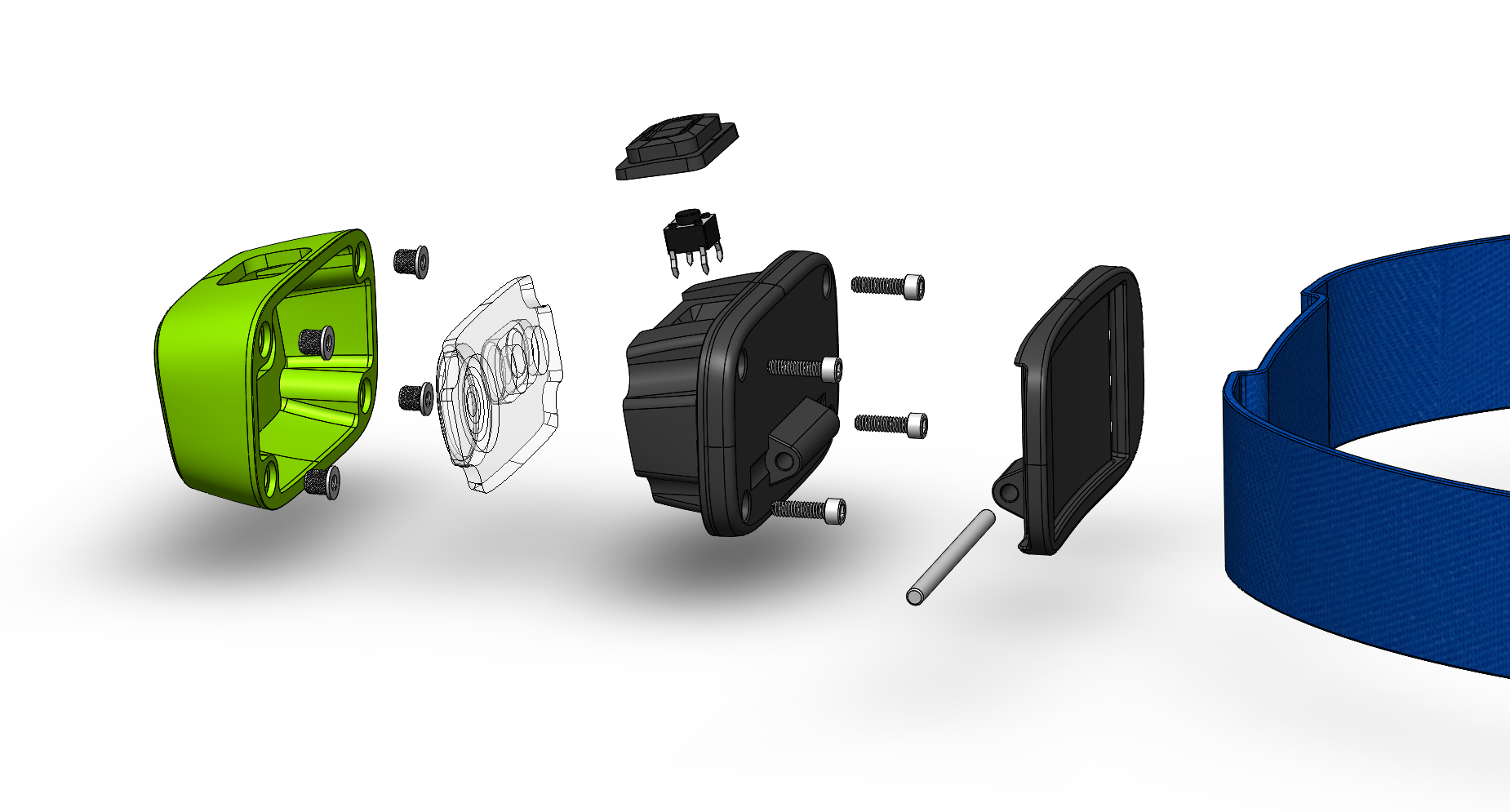

The following screenshots show the various pieces. They are not intended to represent design for manufacture. Rather they are simplified pieces to make an appearance prototype, with the only function being a clicking button and a pivoting hinge.

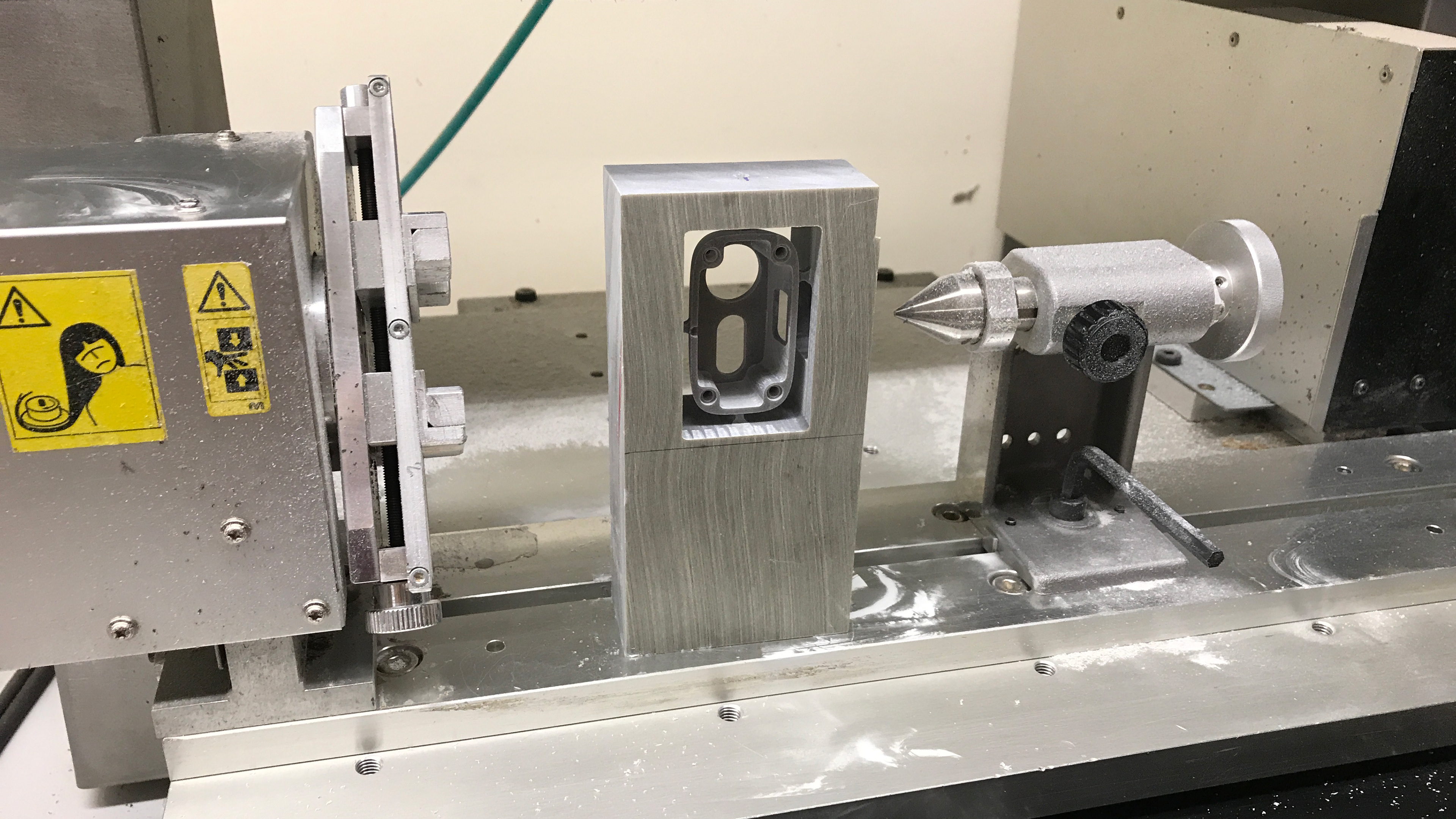

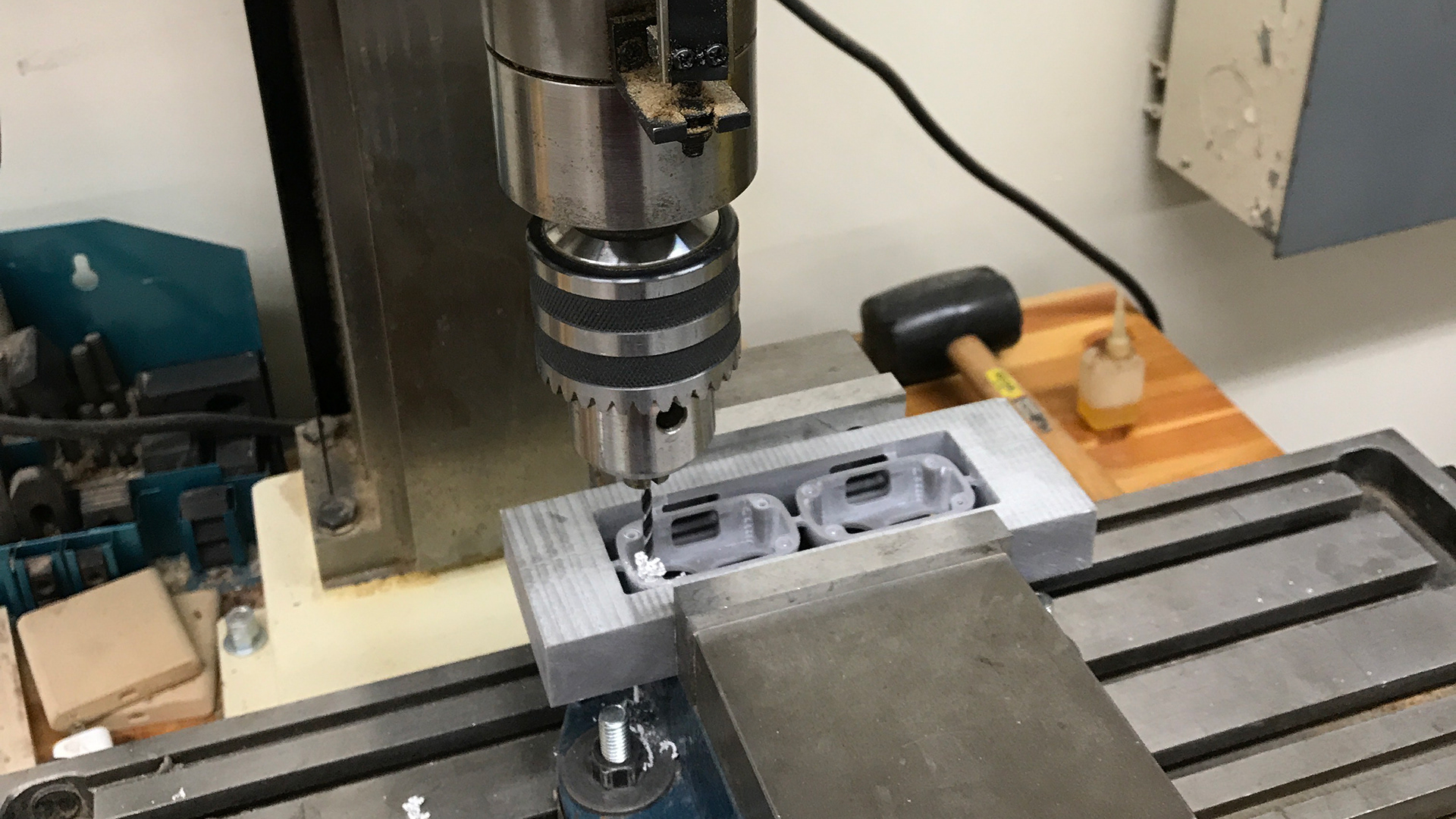

Preparing example model for the students.

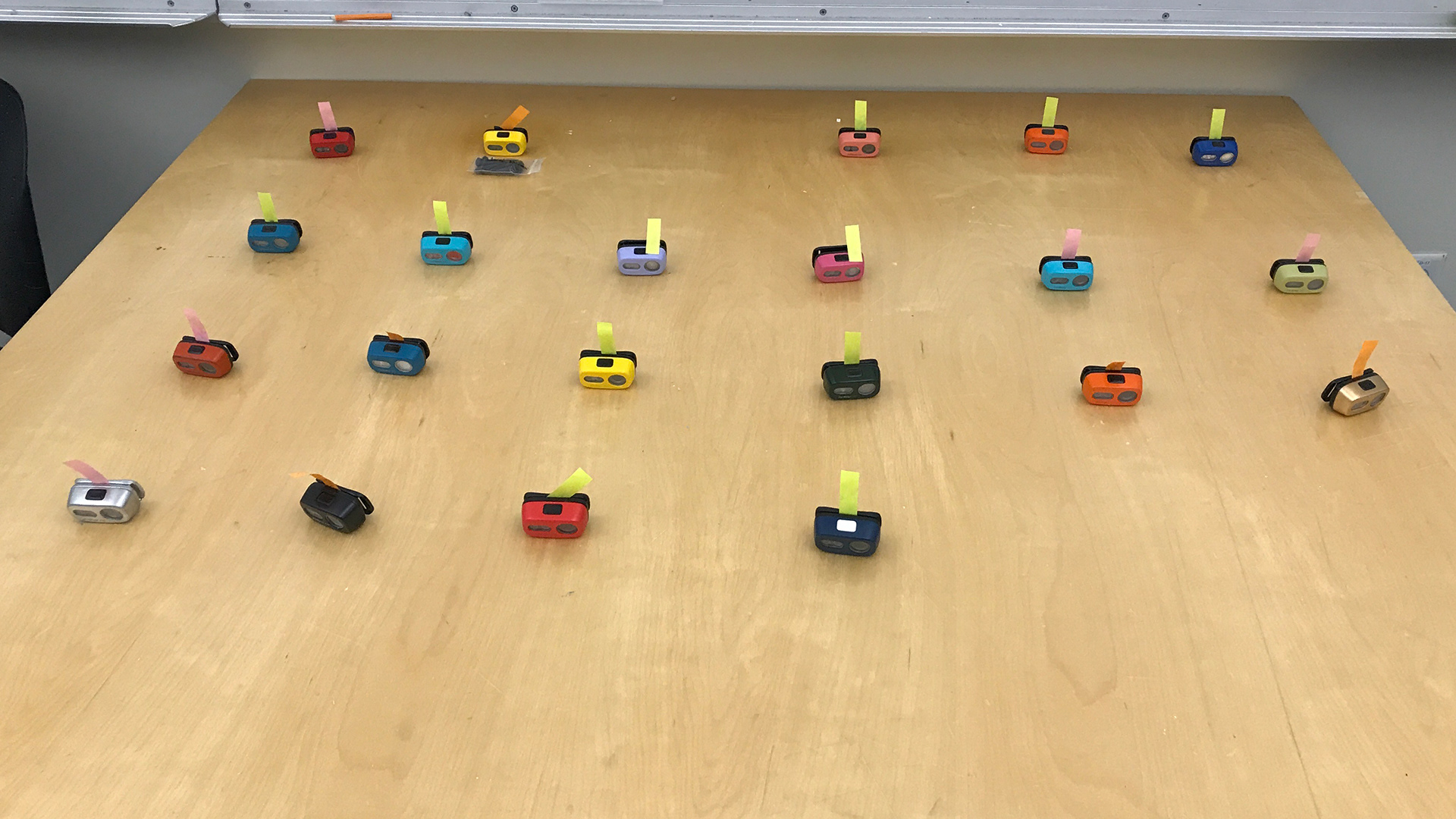

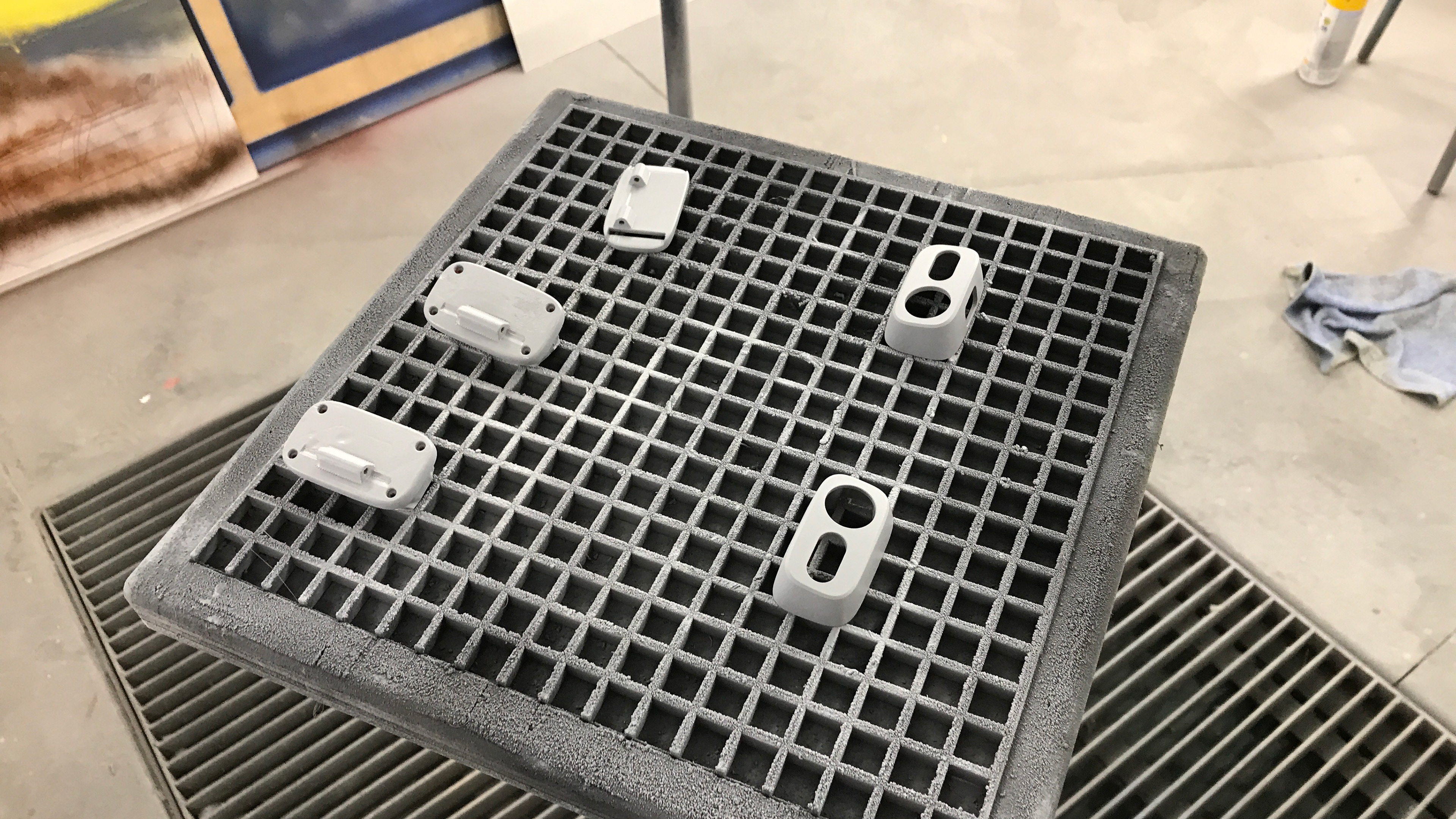

Models completed by the students.
