Improved shaft release button on a patented linear stapling medical device.
I worked on the shaft release button on this device while interning at Ethicon in 2014. The device was never released, but it was patented. A link to the patent is at the bottom of this page.

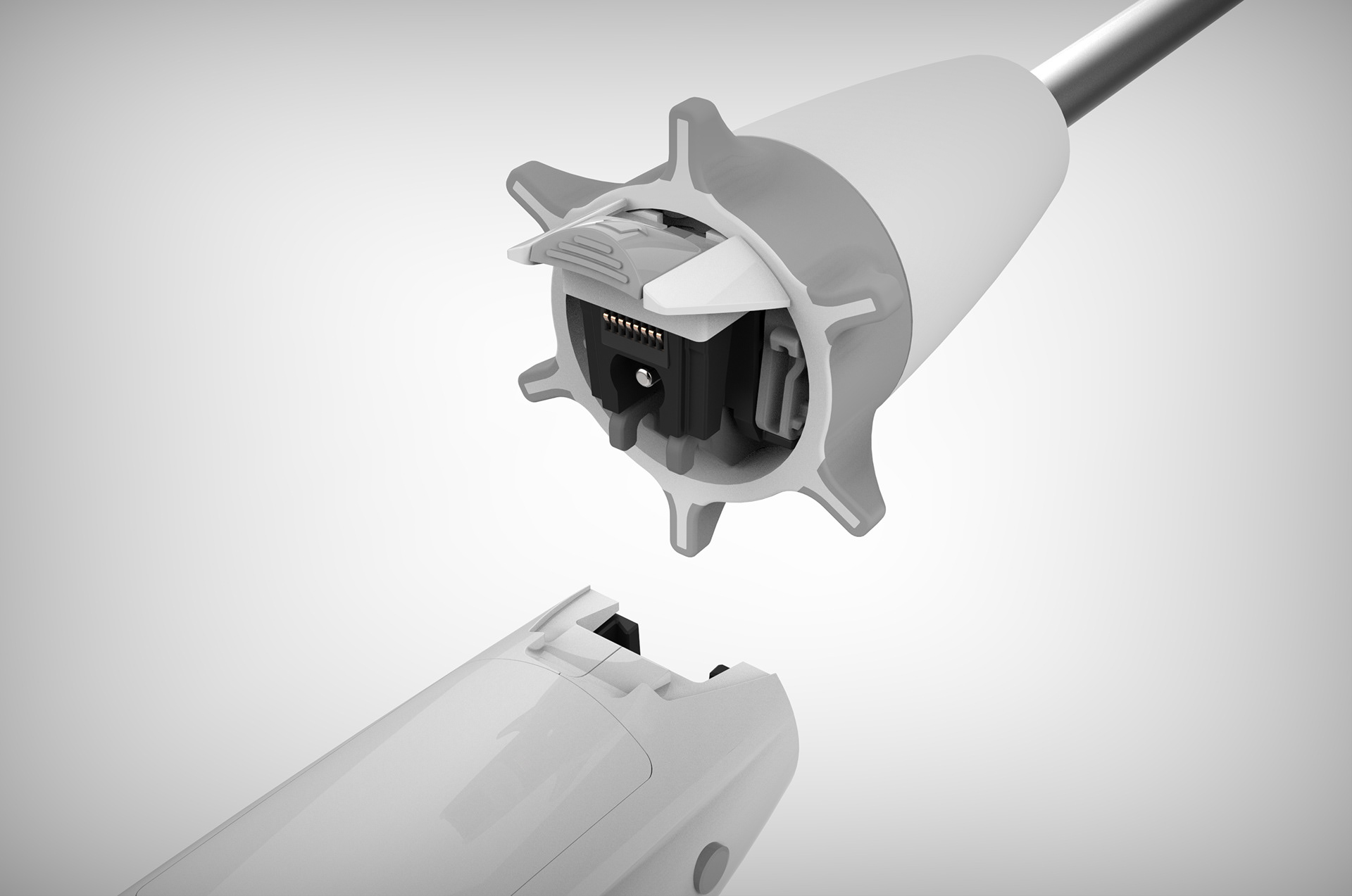

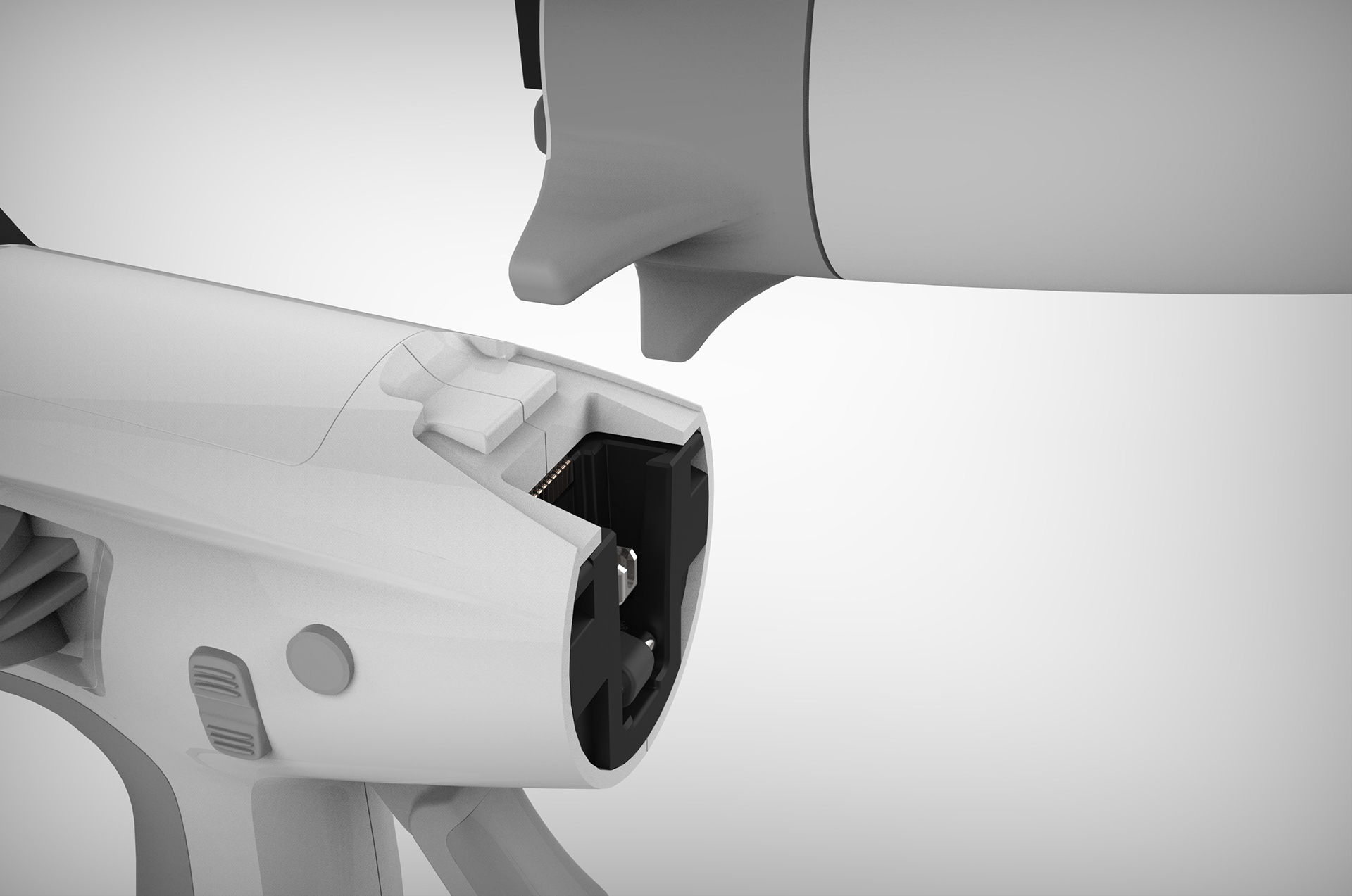

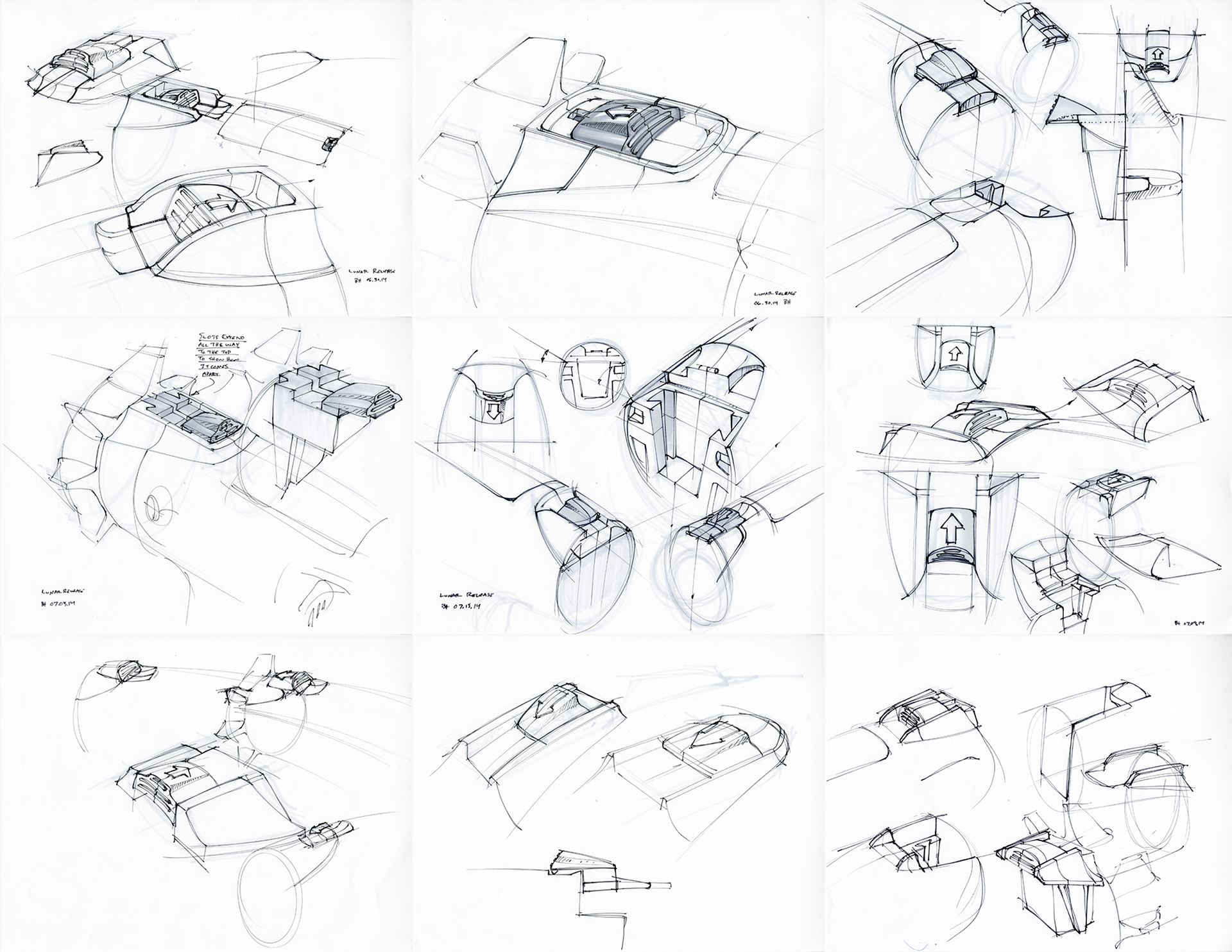

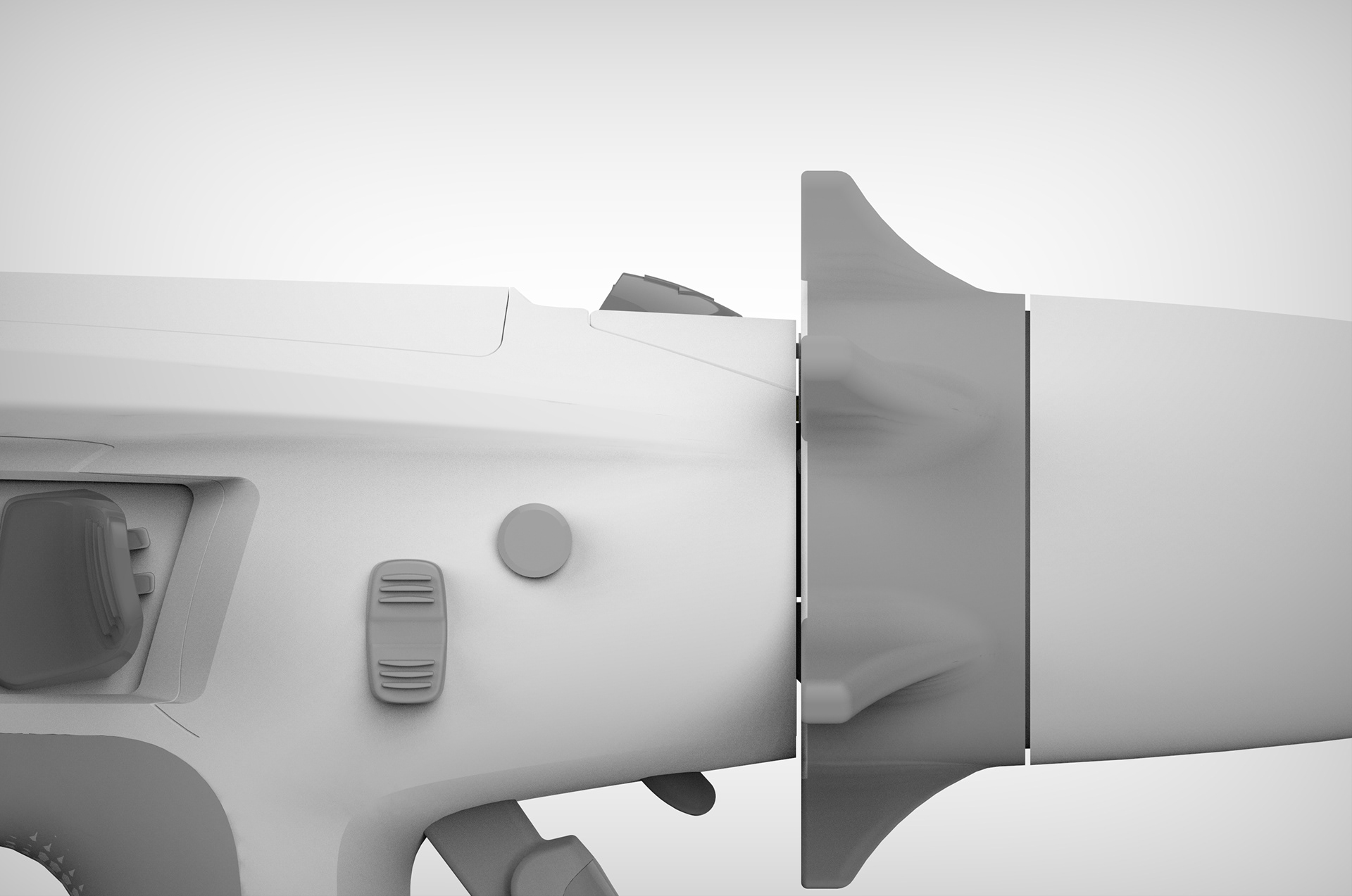

The device was far along when some user testing found that users were having a difficult time removing the shafts. Under the direction of another designer, I explored different button shapes that worked with the existing latch mechanism to make shaft removal easier.
![](https://cdn.myportfolio.com/32a5e96f-727d-4fe1-80dc-47da17c7d16b/31c8a415-625d-4494-b977-4e8fa2db0f61_rw_1920.jpg?h=a1b9746789a0ee3b943e69c960df31e5)
![](https://cdn.myportfolio.com/32a5e96f-727d-4fe1-80dc-47da17c7d16b/bdb2cfb5-1df2-4093-b11e-36f07ef4b6ec_rw_1920.jpg?h=cf05f39580b26e34a82a201e8d384e72)
![](https://cdn.myportfolio.com/32a5e96f-727d-4fe1-80dc-47da17c7d16b/c6cf3d1d-c75a-452f-85d3-6dc2c4653931_rw_1920.jpg?h=209d6103569920fba40f7eff4f7fdcc1)
![](https://cdn.myportfolio.com/32a5e96f-727d-4fe1-80dc-47da17c7d16b/d5a4df11-46ad-457d-870e-5151ae62c23c_rw_1920.jpg?h=958281875700ee28736cc220b80152b1)
![](https://cdn.myportfolio.com/32a5e96f-727d-4fe1-80dc-47da17c7d16b/bf913943-4a88-42ee-93a8-3ded8845c179_rw_1920.jpg?h=6d5366df0b0ea291eeb5dc9d02538b7e)
![](https://cdn.myportfolio.com/32a5e96f-727d-4fe1-80dc-47da17c7d16b/9a1aafc1-2302-4dec-829c-9abd66955ac3_rw_1920.jpg?h=69f8307b85fcf4499fcf3cfba355772f)

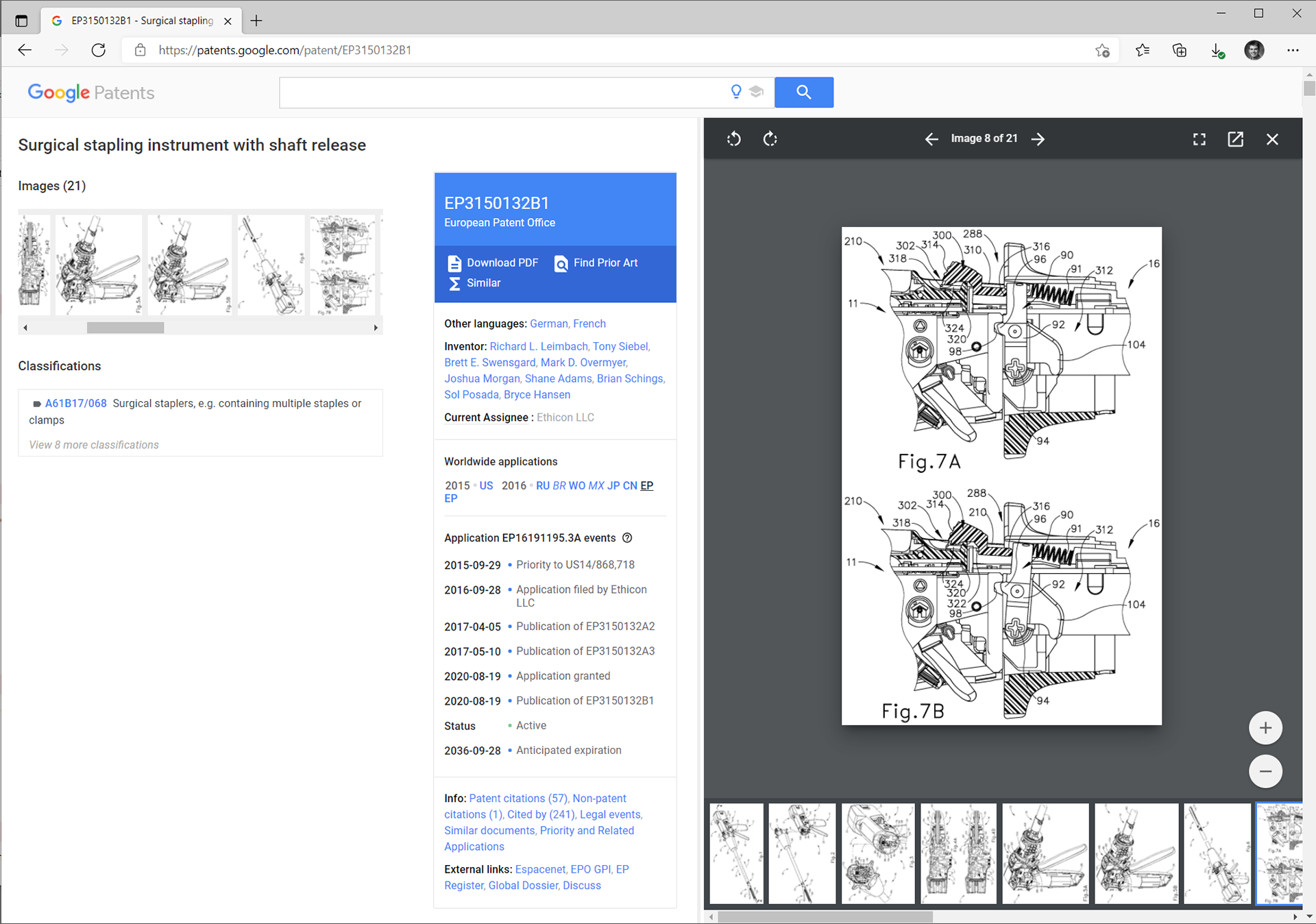

Link to the patent for this device:
![](https://cdn.myportfolio.com/32a5e96f-727d-4fe1-80dc-47da17c7d16b/4a934580-d28f-44fd-9baa-ad7b0a25716f_rw_1920.png?h=6576b783b2c3299b297d5739e27a1096)
